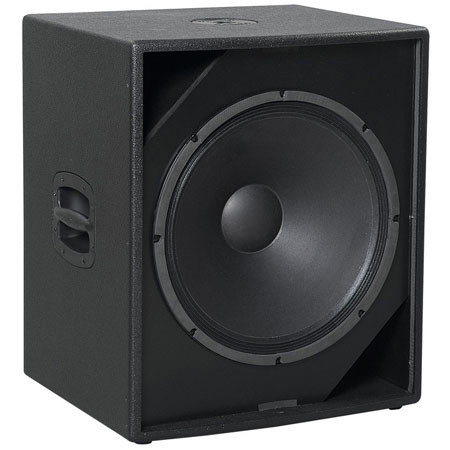

Proel EX18SP 18" 500 Watt Passive Subwoofer
The Proel EX18SP is a new range of full range and subwoofer speaker systems. The cabinet is made of 18 mm MDF with an anti-scratch finish and ergonomic handles. The amplified versions feature dynamic class H amplifiers. It has been designed to meet the requirements of musicians, satisfying a wide range of applications and is adaptable for every type of performance.
The trapezoidal enclosures are made using high grade low-resonance composite wood whilst a thick metal grille protects the transducers against damage. The subwoofers of the Extreme series are equipped with a high-pass 160Hz/cut output to enable connection of mid-high satellite speakers thus forming cost effective and powerful 3-way systems.
|System type||Vented enclosure subwoofer|
|Nominal Impedance||8 ohm|
|Input power rating (continuous)||250 W|
|Input power rating (peak)||500 W|
|Frequency response||40 Hz - 160 Hz|
|Sensitivity||97 dB @ 1W/1m|
|Low Frequency Device||18'' woofer|
|Crossover Frequency||160 Hz, 12 dB/oct. LP - 6 dB/oct. HP|
|Connectors||2 x SPEAKON IN - OUT|
|Construction||18 mm MDF|
|Mounting Pole||1 x top|
|Dimensions (W x H x D)||21.5 x 25.2 x 18.9" (545 x 640 x 480mm)|
|Weight||34 kg (74.970 lb)|
