Proel HPD3000 Rackmount 4 x 750 Watts Power Amplifier, 20Hz - 20kHz Frequency Response

Proel
SKU: PRHPD3000 MFR: HPD3000
Proel HPD3000: Picture 1 thumbnail Proel HPD3000: Picture 2 thumbnail

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $39.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $55.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $59.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $154.95
29% Off

Our Price

$899.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Proel HPD3000

The HPD3000 Rackmount 4 x 750 Watts Power Amplifier from Proel provides professional-quality audio in a compact 2RU rackmount chassis. The amplifier has digital amplification modules that use Pulse Width Modulation technology to provide excellent power and efficiency. The amplifier can operate in stereo, bridged, or parallel modes for terrific versatility.

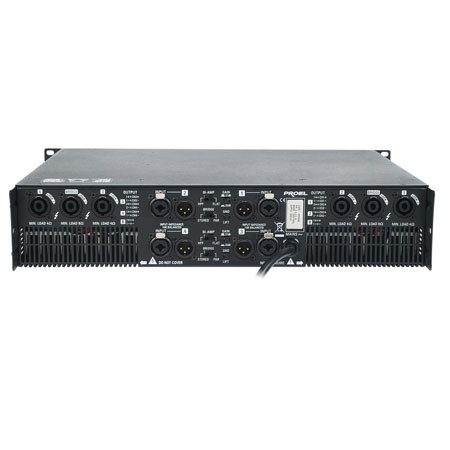

The rear panel offers Neutrik input and output connectors, with XLR/TRS combo inputs and parallel XLR outputs. There are also Speakon outputs for each channel, plus 2 Speakon bridge outputs. These connectors allow you to connect to a wide variety of sound systems and devices. The amplifier has internal protection circuitry that includes thermal protection, short circuit protection, high frequency protection, and a clip limiter circuit for terrific reliability. Indicator LEDs provide you with visual status updates.

There are multiple filtering options, including flat response, selectable 100Hz high pass filters, and a bi-amplified crossover mode. There are also ground-lift switches to eliminate hum caused by ground loops. The amplifier has variable-speed cooling fans with front-to-rear airflow and removable dust filters to keep internal components running smoothly and reliably.

Proel HPD3000 Features

  • The compact 2RU rackmount chassis fits in any standard 19" equipment rack
  • The 4-channel design is like having a pair of stereo amplifiers in a single chassis
  • The internal digital amplification modules use Pulse Width Modulation technology to provide excellent power and efficiency, and also keep weight to a minimum for convenient transportation and installation
  • Switchable between stereo, bridged, or parallel modes for terrific versatility
  • The rear panel offers Neutrik input and output connectors, with XLR/TRS combo inputs and parallel XLR outputs. There are also Speakon outputs for each channel, plus 2 Speakon bridge outputs. These connectors allow you to connect to a wide variety of sound systems and devices
  • Internal protection circuitry includes thermal protection, short circuit protection, DC protection, high frequency protection, soft start, and a clip limiter circuit for terrific reliability
  • Indicator LEDs on the front panel provide you with visual status updates for at-a-glance performance monitoring
  • There are multiple filtering options, including flat response, selectable 100Hz high pass filters, and a bi-amplified crossover mode
  • Ground-lift switches eliminate hum caused by ground loops
  • Variable-speed cooling fans with front-to-rear airflow and removable dust filters keep internal components running smoothly and reliably

Proel HPD3000 Specifications

Power Rating
370W/Channel @ 8 Ohms Stereo
Damping Factor
> 500 @ 8 Ohms
Input Sensitivity
0dBu (0.775VRMS) Nominal, Balanced
+6dBu (1.55VRMS) Nominal, Unbalanced
+3dBu (1.09VRMS) Fixed Gain, Balanced
+9dBu (2.18VRMS) Fixed Gain, Unbalanced
Input Impedance
30 kOhms Balanced
15 kOhms Unbalanced
Gain
37dB (x70) Nominal
32dB (x40) Fixed
Frequency Response
20Hz - 20kHz (+0/-1dB)
10Hz - 30kHz (-3dB)
Signal-to-Noise Ratio
> 105dB Unweighted
Total Harmonic Distortion (THD)
< 0.5%
Inputs
4 x XLR/TRS Combo Inputs
1 x AC Power Input
Outputs
4 x XLR Outputs
4 x Speakon Outputs
2 x Speakon Bridge Outputs
Controls
1 x Power Switch
4 x Volume Knobs
2 x Filter Switches (Flat/HPF/Bi-Amp)
2 x Mode Switches (Stereo/Bridged/Parallel)
2 x Gain Switches
2 x Ground-Lift Switches
Filters
100Hz HPF, Selectable
100Hz 24dB/Oct Bi-Amp Crossover
Indicators
2 x Blue Power LEDs
4 x Green Signal LEDs
4 x Red Limit LEDs
4 x Yellow Protect LEDs
2 x Yellow Bridge Mode Indicators
Protection
Clip Limiter, Short Circuit, DC Voltage, Overheating, HF, Soft Start
Cooling
Variable-Speed Cooling Fans, Front-to-Rear Airflow, Removable Dust Filters
Power Requirements
115VAC ±10%, 50/60Hz
Power Consumption
4000VA Max
1020VA Rated at 1/8 Max
110VA Standby
Dimensions (W x H x D)
483 x 89 x 383 mm / 19.01 x 3.50 x 15.07 inch
Weight
24.3 lbs (11kg)
Mfr #
HPD3000
SKU
PRHPD3000
