Proel HPX1200 Rackmount Stereo 2 x 450 Watts Power Amplifier, 20Hz - 20kHz Frequency Response

Proel
SKU: PRHPX1200 MFR: HPX1200
Proel HPX1200: Picture 1 thumbnail Proel HPX1200: Picture 2 thumbnail

List Price: $480.00

Free Shipping

See all shipping options

Drop Ship - This item is typically shipped to you directly from Manufacturer within 2-5 Days. Delivery is subject to availability. learn more

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $24.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $39.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $84.95
27% Off

Our Price

$349.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Proel HPX1200

The HPX1200 Rackmount Stereo 2 x 450 Watts Power Amplifier from Proel provides professional-quality audio in a compact 2RU rackmount chassis. The amplifier has Class-A/B circuitry to provide excellent power and efficiency. The amplifier can operate in stereo, bridged, or parallel modes for terrific versatility. The rear panel offers XLR, 1/4", and RCA inputs, as well as Speakon and binding post outputs.

These connectors allow you to connect to a wide variety of sound systems and devices. The amplifier has internal protection circuitry that includes AC low power, DC, thermal, short circuit, VHF, and a clip limiter for terrific reliability. Indicator LEDs provide you with visual status updates.

The amp has a selectable LPN (low pass notch) filter that improves bass response for more punch and greater dynamics, while simultaneously protecting connected speakers from over-excursion. The amplifier has variable-speed cooling fans with front-to-rear airflow and removable dust filters to keep internal components running smoothly and reliably. The switch-mode power supply increases efficiency and keeps weight down, ideal for portable systems.

Proel HPX1200 Features

  • The compact 2RU rackmount chassis fits in any standard 19" equipment rack. Die-cast handles on the front panel provide easy installation
  • Class-A/B circuitry provides excellent power, sound quality, and efficiency
  • Switchable between stereo, bridged, or parallel modes for terrific versatility
  • Detented level controls are provided for each channel, allowing you to make precise volume adjustments

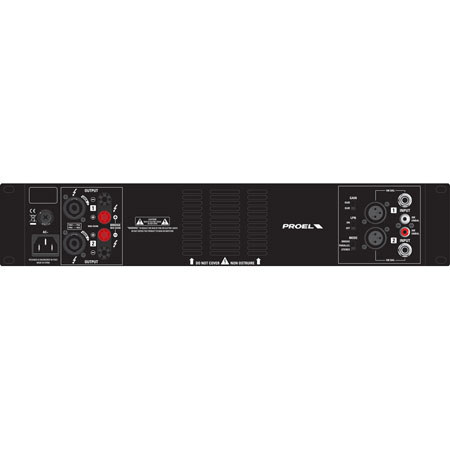

  • The rear panel offers XLR, 1/4", and RCA inputs, as well as Speakon and binding post outputs. These connectors allow you to connect to a wide variety of sound systems and devices
  • Internal protection circuitry includes AC low power, DC, thermal, short circuit, VHF, and a clip limiter for terrific reliability
  • Indicator LEDs provide you with visual status updates
  • A selectable LPN (low pass notch) filter improves bass response for more punch and greater dynamics, while simultaneously protecting connected speakers from over-excursion
  • Variable-speed cooling fans with front-to-rear airflow and removable dust filters keep internal components running smoothly and reliably
  • The switch-mode power supply increases efficiency and keeps weight down, ideal for portable systems

Proel HPX1200 Specifications

Power Rating
300W/Channel @ 8 Ohms Stereo
Circuit Type
Class-A/B
Damping Factor
> 100
Input Sensitivity
+1.0dBu/0.87VRMS Nominal
+4.0dBu/1.23VRMS Fixed
Input Impedance
20 kOhms Balanced
10 kOhms Unbalanced
Gain
35dB (56x) Nominal
32dB (40x) Fixed
Frequency Response
20Hz - 20kHz (+0/-0.5dB)
Signal-to-Noise Ratio
> 86dB Unweighted
Total Harmonic Distortion (THD)
< 0.1%
Slew Rate
> 20V/uS
Inputs
2 x XLR Inputs
2 x 1/4" Inputs
2 x RCA Inputs
1 x AC Power Input
Outputs
2 x Speakon Outputs
2 x Binding Post Outputs (2 Posts Each)
Controls
1 x Power Switch
2 x Volume Knobs
1 x Mode Switch (Stereo/Bridged/Parallel)
1 x Gain Switch
1 x LPN Switch
Filters
LPN Filter, Selectable
Indicators
1 x Power LED
1 x On LED
2 x Signal LEDs
2 x Limit LEDs
2 x Protect LEDs
1 x Bridge LED
1 x Parallel LED
Protection
AC Low Power, DC, Thermal, Short Circuit, VHF, Clip Limiter
Cooling
Variable-Speed Cooling Fans, Front-to-Rear Airflow, Removable Dust Filters
Power Requirements
120VAC (±10%), 50/60Hz
Power Consumption
1850VA Max
250VA Rated
65VA Standby
Dimensions (W x H x D)
483 x 89 x 335 mm / 19.01 x 3.50 x 13.18 inch
Weight
6.9 kg (15.2145 lb)
