About Premier Mounts AM225T

The Premier Mounts AM225T scissor-style mount supports displays up to 225 lb. and provides smooth and easy adjustments from the wall. It extends 20 in. from the wall, offers ten degrees of continuous tilt and provides 45deg. of swivel to both sides. Post-installation leveling enables fine-tune vertical adjustment of the display after installation. The Premier Mounts AM225 wall mounting brackets are designed to easily attach to 12 or 16 in. studs. The open design makes it easy to set up cable and electrical wiring while the included zip ties keep cables out of the way of the mount's motion path. Built-in lateral shift allows for flexible flat-panel placement.

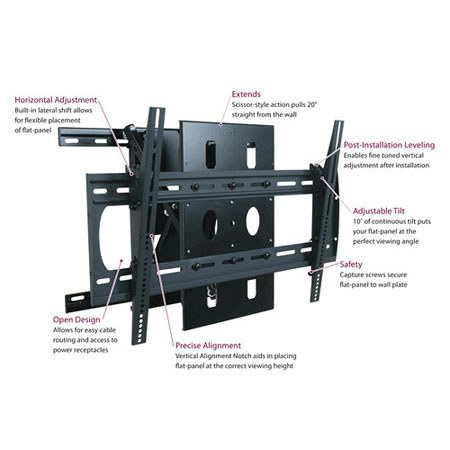

Premier Mounts AM225T Features

  • Scissor-style mount extends 20" (508mm) straight from the wall
  • Post-installation leveling enables fine tuned vertical adjustment after installation
  • Open design allows for easy cable routing and access to power receptacles
  • Built-in lateral shift allows for flexible placement of the flat panel
  • 10deg. continuous adjustable tilt puts your flat panel at the perfect viewing angle
  • Capture screws secure flat panel to wall plate
  • Vertical alignment notch aids in placing the flat panel at the correct viewing height
  • Universal hardware pack includes innovative universal spacers and M4-M8 screws
  • Mounting kit includes wood, concrete and steel stud attachment hardware

Premier Mounts AM225T Specifications

Weight Capacity
225lbs / 102.06kg
Mounting Pattern Type
Mounting Pattern
200 x 200 (Min) - 800 x 525 (Max) mm
Display Range
37-63" / 939.8-1600.2mm
Dimensions (WXDXH)
33.25x22.60x5.47" / 844.55x574.04x138.94mm
