Premier Mounts

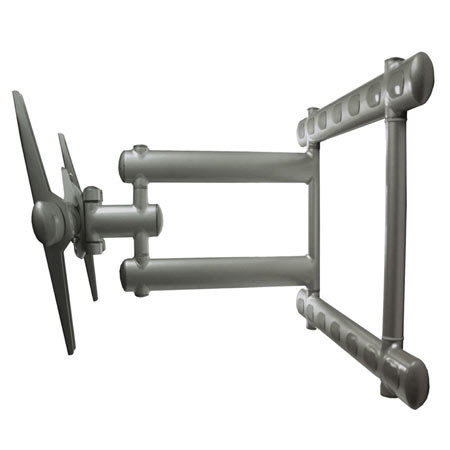

Premier Mounts AM300 Swingout Mount for Flat-Panel Displays Up to 300lbs, Silver

SKU: PRMAM300 MFR: AM300
Usually ships in 3-5 days
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

About the Premier Mounts AM300

The Premier Mounts AM300 (Silver) is a full-articulation swingout mount for flat-panels up to 300lbs. Typically fits displays larger than 40" or displays with a mounting pattern of 225 x 225mm to 985 x 665mm. The AM300 extends 26" from the wall and allows up to 90deg. of swivel to both sides. The swingout arm can be pulled out from the wall and move to the left or right, while providing 10deg. of tilt. It can easily be moved back to its home position, at a depth of 3.97" from the wall.

Premier Mounts AM300 Features

  • Patented Griplate supports flat-panel displays and holds the display tight on the mounting brackets
  • Smooth tilt adjustment featuring Radial Glide
  • May be installed to swing out from left or right
  • Wide range of movement with 90deg. of swivel for extra swingout
  • Extends 4 - 26" from the wall

Premier Mounts AM300 Specifications

Load Capacity 300lbs / 136kg
Mounting Pattern Type Range
Mounting Pattern Min: 225x225 - Max: 985x665mm
Display Range 37 - 68" / 93.98 - 172.72cm
Tilt +10deg.
Swivel 90deg.
Pitch +45.00deg. / -45.00deg.
Dimensions (WxHxD) 39.37x26.95x3.97" / 99.99x68.45x10.1cm
Weight 60lbs / 27.22kg
