Premier Mounts

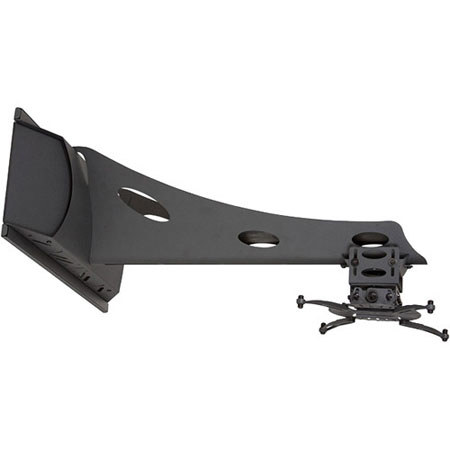

Premier Mounts UNI-PDSB Wall Mount for Ultra-Short-Throw Projectors

Special Order Item - This item typically ships within 2-5 Days. Delivery is subject to availability.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

About this item

The Premier Mount UNI-PDSB combines the universal Fine-Tune Projector (FTP) mount with a universal short-throw projector wall mount. Offering more adjustment options than any other projector arm, the UNI-PDSB extends 7 - 27 in. from the wall or up to 67 in. when used with an optional arm extension. It does not require a stud located in the center of the whiteboard or screen and mounts to dual studs at 16, 18 or 24 in. spacing.

Key Features

  • Features slotted mounting base with 6 interchangeable legs (4 long and 2 short) to reach wider mounting points
  • OSHPD and DSA approved (OPA-2440-07)
  • Best for classroom and conference rooms where ceiling installations are not possible
  • Optional audio upgrade with the UNI-AUDB kit
  • Includes patent-pending GearBox for amplifier PC, Mac mini, or control modules
  • Extends 7 to 27" (17.8 to 68.6 cm) in from the wall

Technical Specs

Mounting Reach 16.43" / 417 mm
Adjustable Distance 27.00" / 686 mm
Pitch +16.50deg. / -16.50deg.
Roll +7.50deg. / -7.50deg.
Yaw +41.00deg. / -41.00deg.
Weight Capacity 50 lbs / 22.7 kg
Depth 7.00" / 178 mm
Weight 32.00 lbs / 14.5 kg
