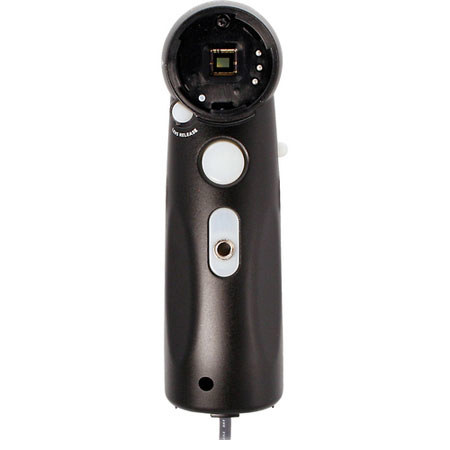

Bodelin Technologies ProScope HR2 Handheld Digital Microscope CSI Lab Kit

See all Bodelin Technologies items
Bodelin Technologies HR2: Picture 1 thumbnail Bodelin Technologies HR2: Picture 2 thumbnail Bodelin Technologies HR2: Picture 3 thumbnail Bodelin Technologies HR2: Picture 4 thumbnail Bodelin Technologies HR2: Picture 5 thumbnail
Bodelin Technologies HR2: Picture 1 regular $799.95

About Bodelin Technologies HR2

The ProScope HR2 is a hand-held digital microscope from Bodelin Technologies for PC and Macintosh platforms. Utilizing a single USB 2.0 port, the HR2's state-of-the-art 2 MP Aptina CCD puts high-resolution imaging in the palm of your hand. The HR2 produces remarkable live-view presentations by streaming pixels at full resolution - this technological advancement not only produces stunning high-magnification imagery, it also allows intensive image-adjustment.

Because the ProScope HR2 allows you to take the microscope to the subject in its native environment, it's an invaluable tool for science education, law enforcement and industrial quality-control applications. This is the ProScope HR2 CSI Lab Kit which includes the following items; 0-10x lens, 50x lens, 200x lens, ProScope precision stand, C-mount adapter, lens tube adapter, HR software and a standard carry case.

Optional lenses for specialized applications (30N, 100x, 400x) are available separately. Other optional accessories include an adapter for borescopes, a measurement software-package that is accurate to 10 microns and an image analyzer software-package.

The ProScope HR2 is manufactured in Oregon USA and it is RoHS compliant. It's a UVC plug-and-play device that's bundled with Windows and Mac software for capturing stills, video and time-lapse images. The HR2 can also be used live over the Internet with programs like Skype and Apple's iChat.

Bodelin Technologies HR2 Features

  • 2MP Imaging: Capture stills, video and time-lapse imagery at 1600 x 1200
  • System Capability: Accepts interchangeable lenses, C-mount adapters, analog microscope adapter
  • High Speed USB: Utilizes USB connection for high-resolution live-view clarity
  • UVC Plug and Play: USB Video Class - plug and play operation without software. This allows use of the ProScope HR live over the Internet with programs like SKYPE and Apple iChat
  • Video Controls: Brightness, contrast, saturation, sharpness, manual, auto exposure, image orientation (flip/mirror), manual/auto white balance w/presets, RGB white balance components. Light source/white-balance presets: ProScope HR2 LED, incandescent, fluorescent, daylight, auto
  • RoHS Compliant: Free from lead and made with a lead free process
  • Dual Tripod Mounts: Front and rear standard 1/4-20" threaded mounts
  • Operating System Requirements: Windows XP SP2 and up, Mac OS 10.4.8 and up

Bodelin Technologies HR2 Specifications

0-10x, 50x, 200x
2 MP 1/3" color sensor, 1,920,000 effective pixels
USB 2.0
Cable Length
6.0' / 1.8 m
Still Capture
QVGA/320x240, VGA/640x480, SXGA/1280x1024
Video Capture
QVGA - 30 fps @ 320x240, VGA - 15 fps @ 640x480, SXGA - 3.75 fps @ 1280x1024 pixels, UXGA - 2.5 fps @ 1600x1200
Power Source
Powered via USB Interface
Temperature Ranges
Operating: 41 to 104 deg.F/ 5 to 40 deg.C
Storage: 14 to 140 deg.F / -10 to 60 deg.C
Apple System Requirements
G4, G5 or Intel Mac
Mac OSX 10.4.8 and later
QuickTime 7 or later
Factory installed USB 2.0 high speed port
Windows System Requirements
Pentium 4 equivalent or faster
Windows XP/Vista and later
QuickTime 7 or later
DirectX 9 or later
Factory installed USB 2.0 high speed port
6.0 x 1.8" / 15.2 x 4.5 cm
6.5 oz / 185 g
Mfr #
