Bodelin Technologies ProScope HR QC Inspector Kit 856776000016

See all Bodelin Technologies items
Bodelin Technologies : Picture 1 thumbnail Bodelin Technologies : Picture 2 thumbnail Bodelin Technologies : Picture 3 thumbnail Bodelin Technologies : Picture 4 thumbnail Bodelin Technologies : Picture 5 thumbnail
Free Shipping

See all shipping options

Special Order Item - This is a special order item that is Non Cancelable and Non Returnable. We Charge you when you place your order. Approximate arrival at Adorama 3-7 Days from date of order. learn more

Made in USA

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About Bodelin Technologies

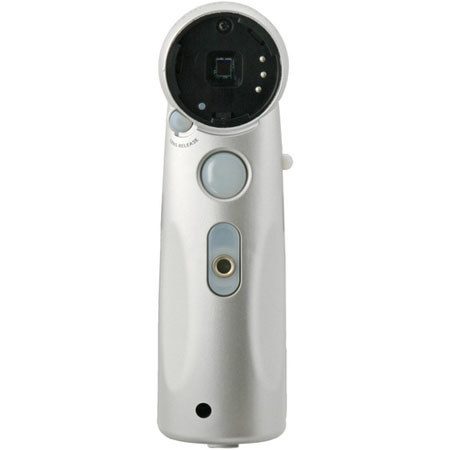

The ProScope HR is a hand-held digital microscope from Bodelin Technologies for PC and Macintosh platforms. Utilizing a single USB port, the HR's 1.3 MP Aptina CCD puts high-resolution imaging in the palm of your hand. The HR produces remarkable live-view presentations by streaming pixels at full resolution - this technological advancement not only produces stunning high-magnification imagery, it also allows intensive image-adjustment.

Because the ProScope HR allows you to take the microscope to the subject in its native environment, it's an invaluable tool for science education, law enforcement and industrial quality-control applications. This is the ProScope HR QC Inspector Kit which includes the following items; 0-10x lens, 50x lens, ProScope flexible stand, HR software, screen measurement software and a deluxe carry case.

Optional lenses for specialized applications (30N, 100x, 200x, 400x) are available separately. Other optional accessories include adapters for borescopes and analog microscopes and an image analyzer software-package. The ProScope HR is manufactured in Oregon USA and it is RoHS compliant. It's a UVC plug-and-play device that's bundled with Windows and Mac software for capturing stills, video and time-lapse images. The HR can also be used live over the Internet with programs like Skype and Apple's iChat.

Bodelin Technologies Features

  • 1.3 MP Imaging: Capture stills, video and time-lapse imagery at 1600 x 1200
  • System Capability: Accepts interchangeable lenses, C-mount adapters, analog microscope adapter
  • High Speed USB: Utilizes USB connection for high-resolution live-view clarity
  • UVC Plug and Play: USB Video Class - plug and play operation without software. This allows use of the ProScope HR live over the Internet with programs like SKYPE and Apple iChat
  • Video Controls: Brightness, contrast, saturation, sharpness, manual, auto exposure, image orientation (flip/mirror), manual/auto white balance w/presets, RGB white balance components. Light source/white-balance presets: ProScope HR2 LED, incandescent, fluorescent, daylight, auto
  • RoHS Compliant: Free from lead and made with a lead free process
  • Dual Tripod Mounts: Front and rear standard 1/4-20" threaded mounts
  • Operating System Requirements: Windows XP SP2 and up, Mac OS 10.4.8 and up

Bodelin Technologies Specifications

0-10x, 30x, 100x, 200x
1.3 MP 1/3" color sensor, 1,310,720 effective pixels
USB 2.0
Cable Length
6.0' / 1.8 m
Still Capture
QVGA/320x240, VGA/640x480, SXGA/1280x1024
Video Capture
QVGA - 30 fps @ 320x240, VGA - 15 fps @ 640x480, SXGA - 3.75 fps @ 1280x1024, UXGA - 2.5 fps @ 1600x1200
Power Source
Powered via USB Interface
Temperature Ranges
Operating: 41 to 104 deg.F/ 5 to 40 deg.C
Storage: 14 to 140 deg.F / -10 to 60 deg.C
Apple System Requirements
G4, G5 or Intel Mac
Mac OSX 10.4.8 and later
QuickTime 7 or later
Factory installed USB 2.0 high speed port
Windows System Requirements
Pentium 4 equivalent or faster
Windows XP/Vista and later
QuickTime 7 or later
DirectX 9 or later
Factory installed USB 2.0 high speed port
6.0 x 1.8" / 15.2 x 4.5 cm
6.5 oz / 185 g
