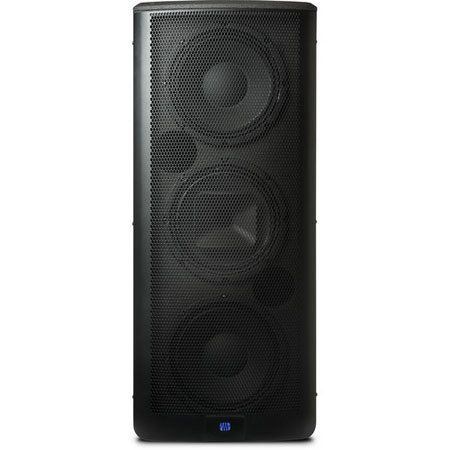

PreSonus 328AI Three-Way Dual 8" Loudspeaker with Active Integration, 2000W Powered, Each

PreSonus
SKU: PSSL328AI MFR: STUDIOLIVE 328AI
PreSonus 328AI Three-Way Dual: Picture 1 thumbnail PreSonus 328AI Three-Way Dual: Picture 2 thumbnail

List Price: $1,599.95

Free Shipping

See all shipping options

In Stock Online - Usually ships within 1-2 Days learn more

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $54.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $79.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $222.95
16% Off

Our Price

$1,349.95
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About PreSonus 328AI Three-Way Dual

The PreSonus 328AI Three-Way 2,000W Powered Dual 8" Loudspeaker with Active Integration is a compact PA enclosure with full-range sound and performance. It features dual 8" ferrite woofers for low frequencies and a custom-designed 8" coaxial speaker with a 1.75" titanium compression driver. These transducers are driven by 2,000W RMS of triamplified, Class D power.

Coaxial systems mount two drivers on the same axis, thus providing a single-point source for a consistent acoustic center. This results in symmetry of response on both the horizontal and vertical axes, at any given angle. The crossover transition is seamless at all angles. The onboard 96kHz/32-bit floating point DSP employs Temporal Equalization to perfect coaxial performance.

The 328AI has flexible connectivity, featuring an XLR/TRS combo input as well as an XLR microphone input. The microphone input provides an XMAX Class A preamplifier and 12V phantom power. An additional XLR mix output can send a parallel signal to another powered speaker. Wireless and wired speaker level-attenuation can be controlled via USB and Ethercon connections.

The plywood enclosure is pole-mountable and has two ergonomic side handles, M10 fly points and allows stable stacking. Four DSP preset Operation Modes optimize performance to the application, including MP3 playback, live performance, or stage monitoring as well as a custom user preset using the SL Room Control software for Mac, Windows and iPad.

PreSonus 328AI Three-Way Dual Features

  • Unique coaxial design integrates a custom-designed, 8-inch, ferrite midrange driver and 1.75-inch titanium compression driver with Temporal Equalization and Coaxial Speaker Coherence Alignment
  • Dual 8-inch, custom-designed, ferrite, low-frequency transducers
  • Active Integration 32-bit, 96 kHz DSP with more processing power than three rack speaker processors
  • 32-bit floating-point DSP with asymmetric three-way crossover, Temporal Equalization for horn reflection, linear time- and amplitude-anomalies correction, performance contouring, dynamic limiting and excursion limiting
  • Wireless or wired networking with free SL Room Control software for Mac, Windows and iPad enables complete setup, tuning and monitoring
  • Network Setup Wizard automatically detects each speaker and allows you to quickly connect to your wireless router network
  • Remote control over Maximum SPL/output level, high-pass filter, onboard operational modes, performance monitoring, mute and speaker delay
  • 31-band graphic EQ and 8-band parametric EQ (total of 10, including feedback notch filter)
  • Visually display room layout on a laptop or iPad
  • Edit, save, recall and share speaker-setup parameters
  • XMAX Class A mic preamp with 12V phantom power
  • Line-level input with attenuation
  • Speaker-attenuation control
  • Balanced XLR Mix output
  • External Subwoofer mode activates a low-cut filter and alignment delay for combining StudioLive 18sAI subwoofer with 328AI in a true 4-way system
  • Universal Switch mode power supply with power-factor correction
  • Comfortable, ergonomic handles
  • Integrated M10 fly points and pole mounts

PreSonus 328AI Three-Way Dual Specifications

Active or Passive
Active
Power Capacity
2,000W Class D triamplification:
2 x 500W Low frequency
500W Midrange
500W High Frequency
Low Frequency Driver
2 x 8" (20.3 cm) ferrite
Mid Frequency Driver
8" (20.3 cm) ferrite
High Frequency Driver
1.75" (4.4 cm) titanium compression driver
Enclosure Material
Plywood
Input Connections
1 x XLR balanced
1 x 1/4" TRS balanced
Panel Microphone Preamp
1 x XLR Mic Input
XMAX Class A preamp with 12V phantom power
Control Input
1 x Ethercon
1 x USB for use with included Wi-Fi LAN adapter
Dimensions (WxDxH)
15x15.68x29.13" (381x398.27x739.9 mm)
Weight
56 lbs (25.4 kg)
Mfr #
STUDIOLIVE 328AI
SKU
PSSL328AI
