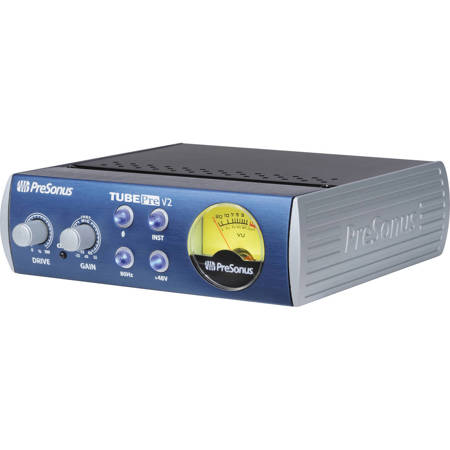

PreSonus TubePre V2 Mono Tube Preamp (1/3U)

PreSonus
SKU: PSTUBEPREV2 MFR: TUBEPRE V2
PreSonus TubePre V2: Picture 1 thumbnail PreSonus TubePre V2: Picture 2 thumbnail PreSonus TubePre V2: Picture 3 thumbnail
Free Shipping

See all shipping options

In Stock Online - Usually ships within 1-2 Days learn more

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $14.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $32.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $75.95

Our Price

$129.95
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About PreSonus TubePre V2

• At PreSonus, they have been designing preamps for a long time, & always focus on audio quality first. So when PreSonus decided to upgrade the popular TubePre V2, they focused on improving an already high-quality sound without jacking up the price. Like the original TubePre, the version 2 is a fully professional tube preamp, with a dual-servo (no capacitors) gain stage that lets you boost the program signal to smoking hot levels without significantly increasing the background noise. Discrete components & high-voltage operation offer dynamic range & detail not found in other single-channel tube preamps in its class.

• But the TubePre V2 provides an even wider palette of sound options, & a much more focused tube saturation, than the original TubePre. It has been upgraded to employ PreSonus' popular XMAX Class A solid-state preamp, which is followed in the signal path by a 12AX7 vacuum-tube stage. Twist the TubePre V2 Drive saturation control to add the color that only a hand-selected 12AX7 vacuum tube can deliver from gentle warmth to total fuzz.

• Versatile & Feature-Rich.... Housed in a rugged case, the TubePre V2 rear panel sports separate unbalanced, ¼" instrument and balanced, XLR mic inputs and unbalanced ¼" and balanced XLR line outputs. We've included all of the extras you need for professional operation including a high-pass filter, phantom power for condenser mics, polarity reverse switch, and a backlit VU meter.

• The TubePre V2 is more than a mic preamp, though... Thanks to its separate instrument and mic inputs, it also serves as a dynamite direct box (DI) for guitars and basses. And it's small enough to carry almost anywhere, although you also can screw-mount it to a standard rack tray.

• So if you are a fan of the original TubePre, you're going to love the improved TubePre V2. And if you are checking out the TubePre for the first time, your ears are in for a real treat. Then check out the amazing low price but sit down first because you're in for a shock. Because with PreSonus, big sound does not have to cost big bucks.



PreSonus TubePre V2 Features

  • XMAX Class A preamp input stage
  • 12AX7 dual-servo vacuum tube output stage
  • Input Gain control
  • 48V phantom power
  • 80 Hz high-pass filter
  • -20 dB pad
  • Instrument input select
  • Polarity-reverse switch
  • Backlit VU meter
  • Clip LED
  • Input/Output:
  • 1 unbalanced ¼" instrument input
  • 1 balanced XLR mic input
  • 1 unbalanced ¼" line output
  • 1 balanced XLR line output
  • Compact 1/3U rack-mount chassis
  • External 12 VDC, 1A power supply

PreSonus TubePre V2 Specifications

Connector Type
XLR, female, balanced
EIN
-131 dB, 20 kHz BW, max gain, Rs=40O, A-wtd -128 dB, 20 kHz BW, max gain, Rs=40O, unwtd
Frequency Response
20 Hz 20 kHz, -0.3 dB, +4 dBu, unity gain 5 Hz - 120 kHz, -3 dB, +4 dBu, unity gain
THD+N
0.01%, -10 dBu, 1 kHz, unity gain, 20 kHz BW, unwtd
Dynamic Range
115 dB, 1 kHz, unity gain, 20 kHz BW, A-wtd 107 dB, 1kHz, unity gain, 20 kHz BW, unwtd
Input Impedance
1.3 kO
Phantom Power
+48 VDC, 10 mA
Connector Types
XLR, male, balanced ¼" TS, female, unbalanced
Maximum Output
+20 dBu
Output Impedance
51O
Type
12AX7
External Power Adapter
+12 VDC, 1A, center-pin positive
PSU Barrel Dimensions
5.5 mm O.D., 2.1 mm I.D., 9.5 mm length
Dimensions
1/3U rack-mountable (screw-mount to standard rack tray, not included)
Height 1.75" (44.45 mm) - Depth 5.5 (139.7 mm) - Width 5.5" (139.7 mm) -
Weight
5 lb. (2.27 kg)
