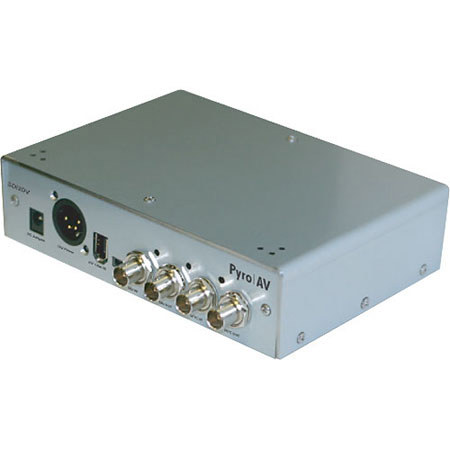

Pyro AV PVC561 DV to SDI, Embedded Audio Bi-Directional Professional Video Converter

Mfr. Part: PVC561     SKU: PYDV2SDI

Pyro AV PVC561 DV to SDI, Embedded Audio Bi-Directional Professional Video Converter
enlarge image

Free Shipping view details

Product Rating Write a Review

Item Includes
Pyro AV 6' (foot) Six to Six Pin 1394 - Power Supply - User Guides - Pyro AV Warranty

Description
Dual Link SDI Converter is a bidirectional DV to SDI converter with embedded audio functionality for affiliates, broadcasters, producers, studios and the portable NLE markets. The embedded audio transmitter and receiver conform to SMPTE 272M-A (audio at 48kHz, synchronous to video). Enable device control as well as original time code by connecting your deck to the Dual Link SDI Converter via the RS-422 port. The Dual Link SDI Converter switches between "decode" and "encode" modes via the "Decode/Encode" button.

The Dual Link SDI Converter can be powered 3 ways: 6 Pin FireWire (1394 Bus Power from your computer), 12V XLR Pack Battery Input, DC Power Input. Connect the Dual Link SDI Converter to your computer via the 6-Pin or 4-Pin 1394/FireWire Connection. The FireWire ports are bidirectional and support both the import and export of the video/audio. Note that the 4-Pin port does not supply power to the Dual Link SDI Converter.

Features
1394 bus powered
6-pin and 4-pin 1394 ports
12V XLR Battery Input
Dual BNC's for 10 bit SDI I/O
Dual BNC's for VITC I/O
RS-422 Machine Control via 9 pin D Sub
Low Profile, lightweight design for portability
Bi-directional conversion
Embedded Digital Stereo Audio at 48 KHz
SMPTE time code support
Analog VITC Support
DVITC Support
Seamless operation with Betacam SX equivalents to the Sony BVW-55, such as the DNW-A25

Specifications
Capture ResolutionNTSC: 720 x 480 @ 30 frames/second
PAL: 720 x 576 @ 25 frames/second
Video formatCapture in DV video format
Audio capture48 KHz (16 bit)
Requirement WindowsMicrosoft Windows 2000 or XP
Intel Pentium IV 1.2 GHz or higher
256 MB of RAM
FireWire/IEEE 1394 interface
Requirement MacAll iMac, iBook, Powerbook or G4 with FireWire/1394 interface
OS: OS 9.x, OS 10, OSX Jaguar
DV/i.LINK/FireWire/IEEE 1394 interface
WarrantyPyro AV warranty
