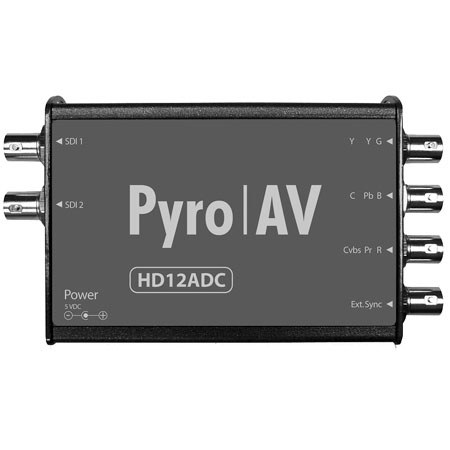

Pyro AV Multi-Rate 12 bit Analog Video to HD/SD-SDI for NTSC, PAL and Secam up to 1080i 60

The HD12ADC accepts analog video (Composite, Y/C. RGB, YPbPr) at resolutions up to 1920 x 1080i 60 and uses 12 bit ADC's to generate two duplicate SDI video streams. The Multi-Rate serializer generates either SD-SDI or HD-SDI depending upon the resolution of the analog video signal input. The HD12ADC provides two Multi-Rate SDI (SMPTE 259M and 292M) outputs over 75 O BNC connectors.

The HD12ADC is a broadcast quality converter designed to demanding quality specifications utilizing the finest components available yet offered at a low cost. The HD12ADC is an exceptional and versatile tool to convert all of your analog video into Multi-Rate SDI streams. The HD12ADC accepts analog video sources (Composite, Y/C, Betacam, YPbPr, RGB) auto detects the format (NTSC, PAL, SECAM) and utilizes 12 bit analog to digital converters producing up to 4:4:4 SDI (SMPTE 292M and 259M-C) SDI video.
