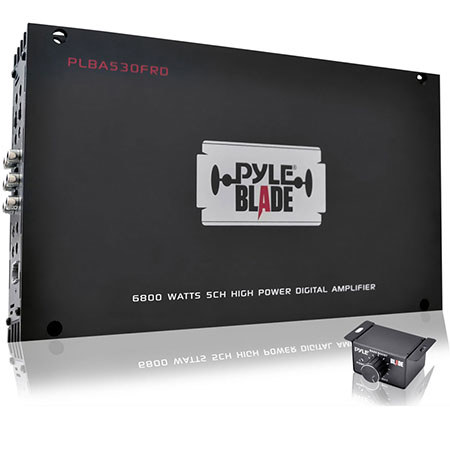

Pyle PLBA530FRD 6800W 5 Channel Compact Class-D Full Range Hybrid Car Amplifier

Pyle PLBA530FRD: Picture 1 thumbnail Pyle PLBA530FRD: Picture 2 thumbnail Pyle PLBA530FRD: Picture 3 thumbnail Pyle PLBA530FRD: Picture 4 thumbnail Pyle PLBA530FRD: Picture 5 thumbnail Pyle PLBA530FRD: Picture 6 thumbnail Pyle PLBA530FRD: Picture 7 thumbnail
Made in USA

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About Pyle PLBA530FRD

The Pyle PLBA530FRD BLADE Compact Class-D Hybrid Amplifier packs up to 6800 W of power on 5 channels - all in a compact package. Form and function meet at the sleek high glossy black brushed accents and the modern heatsink design that looks great and keeps your amplifier's temperature regulated. Tweak your sound to your specifications using the low and high pass crossover controls.

Pump up the bass with the variable bass boost, which can be controlled remotely using the included dash-mountable bass boost module. Nickel plated RCA inputs keep your sound distortion free. And advanced protection circuitry prevents damage due to power spikes and short-circuiting.

Pyle PLBA530FRD Features

  • High Glossy Black Brushed accents Heat Sink
  • New Compact Design Based on Class-D Technology
  • Double Sided SMT Circuit Board
  • 2 Ohms Stereo Stable
  • Dash Mount Remote Subwoofer Control
  • Nickel Plated Low Level RCA Input
  • Power Protection LED Indicators
  • Advanced Protection Circuitry
  • Soft Turn On/Off

Pyle PLBA530FRD Specifications

Power Rating
4 x 300 Watts + 1 x 800 Watts RMS @ 4 Ohms
4 x 600 Watts + 1 x 1600 Watts MAX @ 4 Ohms
4 x 450 Watts + 1 x 1200 Watts RMS @ 2 Ohms
4 x 1200 Watts + 1 x 2000 Watts MAX @ 2 Ohms
LPF Variable Crossover
30Hz-200Hz 24dB/Oct
HPF Variable Crossover
50Hz-180Hz 12dB/Oct
Variable Bass Boost Frequency
Variable Bass Boost
0-18 dB
Phase Adjustable
0deg. - 180deg.
Frequency Response
10 - 40K Hz
S/N Ratio
> 95 dB
25A x 3
Dimensions (H x W x L)
1.99" x 7.40" x 12.72" / 50.55 x 187.96 x 323.09 mm
