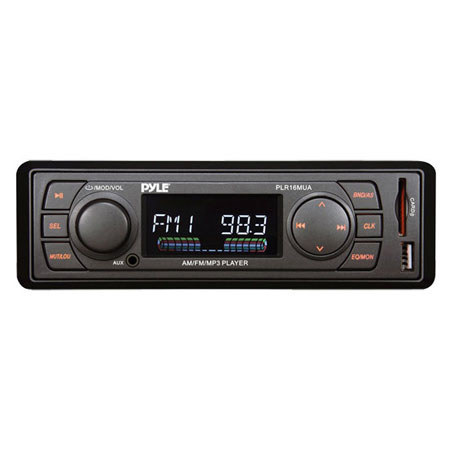

Pyle PLR16MUA In-Dash AM/FM-MPX Receiver with USB/SD Card, MP3 Playback, 87.5MHz-108MHz FM Frequency Range

Pyle
SKU: PYLPLR16MUA MFR: PLR16MUA
Made in USA

Our Price

$25.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Pyle PLR16MUA

The Pyle PLR16MUA In-Dash AM/FM-MPX Receiver with USB/SD Card eliminates those unnecessary inputs and leaves only what you need - a 3.5 mm auxiliary input for your MP3 player, like an iPod, iPhone, or Android phone, plus SD card and USB stick inputs for loading MP3s directly. Now you can have all your favorite music in the comfort of your vehicle. Adjust your audio to your specifications with the volume and balance controls. It provides up to 160 W over 4 channels over RCA to your speakers or amplifier.

Pyle PLR16MUA Features

  • AM/FM-MPX Stereo Tuning
  • Digital LCD Display Panel
  • Auxiliary Input
  • Volume/Balance Control
  • RCA Line Out (4Ch)

Pyle PLR16MUA Specifications

FM Tuner: Frequency Range
87.5MHz-108MHz
FM Tuner: Intermediate frequency
10.7MHZ
AM Tuner: Frequency Range
530-1710KHz
AM Tuner: Usable sensitivity
38Db
AM Tuner: Intermediate frequency
450KHZ
AM Tuner: Antenna terminal
Connect the outside antenna connector
AM Tuner: signal to noise ratio (S/N)
50dB
Play Part: signal to noise ratio (S/N)
50dB
Play Part: Channel Separation
50dB
Play Part: Voltage Harmonic Distortion
5%
Play Part: Frequency Response
100Hz-10kHz (+5dB)
Amplifier Part: Output
Speaker output
Amplifier Part: Speaker Impedance
4 Ohms
Amplifier Part: Max output power
50Wx4
Amplifier Part: Power Supply Voltage
14.4V DC battery
Dimensions (W x D x H)
7" x 4.72" x 1.96" / 17.78 x 11.98 x 4.97cm
Mfr #
PLR16MUA
SKU
PYLPLR16MUA
