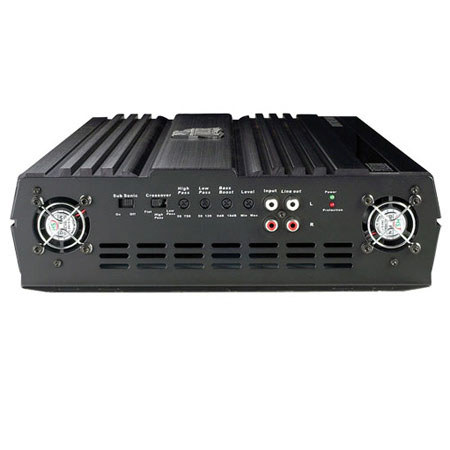

Pyle PLTA580 2 Channel 2000 Watts 24Volt Truck/Bus/RV Bridgeable Mosfet Amplifier

Pyle
SKU: PYLPLTA580 MFR: PLTA580
Pyle PLTA580: Picture 1 thumbnail Pyle PLTA580: Picture 2 thumbnail Pyle PLTA580: Picture 3 thumbnail
Made in USA

Our Price

$369.99
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

Pyle PLTA580: Picture 1 regular $369.99

About Pyle PLTA580

The Pyle PLTA580 is a two-channel, 2000 W amplifier that runs on the 24 V DC power often found in trucks. It's equipped with variable high pass and low pass filters, plus a fixed subsonic filter. This amp is bridgeable for increased power. Nickel-plated RCA connectors and screw down terminals ensure a high-quality connection between your amplifier and accessories. Safety features include power and protection LED indicators; soft turn-on/off; thermal, overload and speaker short protection; and air induction fan cooling system to keep your equipment safe and secure.

Pyle PLTA580 Features

  • Line Out for Left & Right Channel
  • Tri-mode operation, Bridgeable
  • Nickel-plated RCA connectors & Screw terminals
  • Thermal, Over load & Speaker short protection
  • Air Induction FAN Cooled
  • Power & Protection LED Indicators
  • Soft Turn-on/Turn-off

Pyle PLTA580 Specifications

Channels/Class
2 channel Class A/B
Power Rating
2 x 500W RMS at 4 Ohms
2 x 1000W MAX at 4 Ohms
1 x 2000W MAX at 4 Ohms Bridged
Input Sensitivity
100mV-4V
THD 4ohm Power
0.04%
Frequency Response
10Hz-30KHz
S/N Ratio (4 ohm )
90dB
Stereo Separation
65dB
Sub Sonic Filter
20Hz fixed
Variable HPF
50Hz-700Hz
Variable LPF
50Hz-150Hz
Bass Boost
0-18dB (60Hz fixed)
Power Input
DC 24-28 Voltage
Fuse Rating
25Ax4
Dimensions (W x H x L)
11.42 x 3.15 x 21.65" (29 x 8 x 55 cm)
Mfr #
PLTA580
SKU
PYLPLTA580
