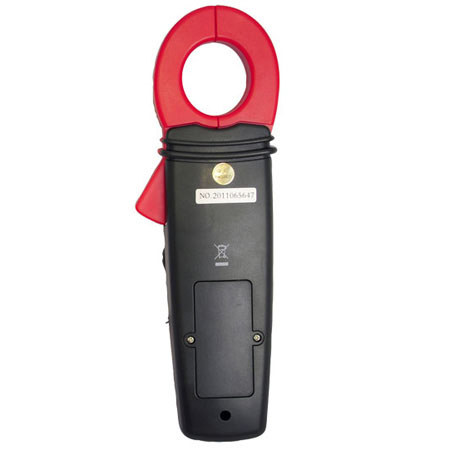

Pyle PCMT20 Digital AC/DC Auto-Ranging Clamp Meter

Pyle
SKU: PYPCMT20 MFR: PCMT20
Pyle PCMT20: Picture 1 thumbnail Pyle PCMT20: Picture 2 thumbnail Pyle PCMT20: Picture 3 thumbnail Pyle PCMT20: Picture 4 thumbnail Pyle PCMT20: Picture 5 thumbnail

See all shipping options

In Stock & Ready to Ship

Our Price

$35.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Pyle PCMT20

The Pyle PCMT20 digital clamp multi-meter does a whole lot - measures AC, DC, AC current, resistance, temperature, capacitance, frequency, continuity and diodes. Clamp conductors up to 0.9" (23 mm) in diameter. LCD display with backlight shows an accurate reading day or night. Max hold captures motor inrush currents and other surges. Black bag, test leads and a type K temperature probe are included. 2 x AAA batteries required for operation (included).

Pyle PCMT20 Features

  • Measures AC and DC
  • LCD Display with Backlight
  • Data Hold, Zero Function, Auto Power Off
  • Lower Battery Indicator
  • 0.9" (23 mm) Jaw Size

Pyle PCMT20 Specifications

Max. Resolution to Current Measurement
0.1uA
Jaw Size
0.9" (23mm)
DC Voltage Range
0-600 V; Accuracy: +/- 0.5%
AC Voltage Range
0-600 V; Accuracy: +/- 1.5%
AC Current Range
0-400 A; Accuracy: +/- 3.0%
Resistance Range
0-40 M ohm; Accuracy: +/- 3.0%
Temperature Range
1000 deg.C / 1832 deg.F; Accuracy: +/- 3.0%
Capacitance Range
100 uF; Accuracy: +/- 2.5%
Frequency Range
150 kHz; Accuracy: +/- 1.2%
Continuity
Buzzer Sounds at 100 ohm
Diode
Test Current 0.3mA; Open Circuit Voltage 1.5V
Batteries
2 x AAA
Dimensions (H x W x D)
8.07 x 2.36 x 1.18" / 20.4 x 5.99 x 2.99 cm
Weight
7.94 oz / 225 g
Mfr #
PCMT20
SKU
PYPCMT20
