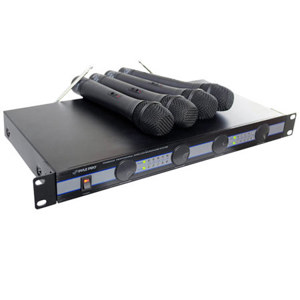

Pyle PDWM5000 4 Mic VHF Wireless Microphone System, Up to 240' Operation Range

Pyle
SKU: PYPDWM5000 MFR: PDWM5000
Pyle PDWM5000: Picture 1 thumbnail Pyle PDWM5000: Picture 2 thumbnail Pyle PDWM5000: Picture 3 thumbnail

See all shipping options

In Stock & Ready to Ship

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $14.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $32.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $75.95

Our Price

$125.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Pyle PDWM5000

The Pyle PDWM5000 4-Mic VHF Wireless Rack Mount Microphone System delivers everything necessary to achieve multi-microphone operation in virtually any scenario. The system includes a multi-channel VHF wireless receiver with 4 individual 1/4" phone outputs and mixed stereo outputs on XLR or 1/4" connections. Easily run all 4 handheld transmitters simultaneously. Each transmitter features an On/Standby/Off switch.

Pyle PDWM5000 Features

  • Professional VHF wireless system
  • Quartz Lock for drift-free operation
  • Four microphones included
  • Power On/Standby/Off switch
  • Audio mute circuitry for quiet operation
  • Advanced companding circuitry
  • AF signal LED segment meter on each channel
  • Individual channel volume controls
  • Individual 1/4" unbalanced outputs
  • XLR balanced and 1/4" unbalanced mixed output
  • 110 V/220 V selectable

Pyle PDWM5000 Specifications

System: Oscillation Mode
Quartz controlled
System: Carrier Frequency Range
VHF 160 - 280MHz
System: Frequency Stability
+/- 0.005%
System: Deviation
+/- 20kHz with level limiting
System: Dynamic Range
> 100dB
System: Signal-to-Noise Ratio
> 60dB
System: THD
> / - 0.5%
System: Frequency Response
40Hz - 20kHz
System: Operating Range
Up to 262' (80m)
Receiver: Sensitivity
40dBu (S/N=60dB)
Receiver: Signal-to-Noise Ratio
> 60dB
Receiver: Audio Output
0-400mV Max
Receiver: Power
AC110V/220V
Transmitter: Antenna
Internal
Transmitter: RF Output
< 10mW
Transmitter: Spurious Emission
40dB
Transmitter: Battery
9V
12 Hours
Approx. 15mA
Dimensions
Receiver: 19 x 9.44 x 2.04" (485 x 240 x 52mm)
Q&A

Questions & Answers Powered by TurnTo®

Questions about this item:

Tim L  Can this be connected to a soundboard on 4 seperate channels (one for each mic) or do all 4 mics work on the same single output?
Andrew R  Yes, this unit can be connected in a manner that provides a separate output for each mic.
