Pyle

Pyle PDWM5500 4-Mic VHF Wireless Microphone System, Up to 240' Operation Range

SKU: PYPDWM5500 MFR: PDWM5500
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$129.00
Free Shipping
Qty:

Add to Wishlist In Stock

Protect your investment

About the Pyle PDWM5500

The Pyle PDWM5500 4-Mic VHF Wireless Microphone System is a effective and viable wireless, multi-microphone system for conference halls, houses-of-worship, auditoriums, presentations, small performances and more. The PDWM5500 operates on VHF frequencies and includes 4 handheld wireless microphone transmitters that can be used simultaneously without noise and interference.

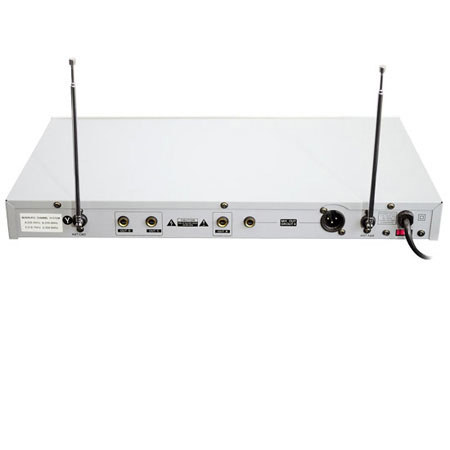

The receiver is rack-mountable, featured dual antennas, balanced XLR and unbalanced 1/4" phone output connections. The receiver displays AF signal strength and transmitter mute status for easy transmitter monitoring. Its 240 ft range is ideal for large and small venues and the system's intuitive controls are easy to operate.

Pyle PDWM5500 Includes

  • Pyle PDWM5500 4-Mic VHF Wireless Microphone System
  • 2 x Antennas
  • Batteries
  • 1/4" Audio Cables
  • Rack Hardware
  • Pyle 1 Year Warranty

Pyle PDWM5500 Features

  • Professional VHF wireless system
  • Quartz lock for drift-free operation
  • Four microphones included
  • Power On/Standby/Off switch
  • Power LED indicates status
  • Audio mute circuitry for quiet operation
  • Advanced companding circuitry
  • AF signal LED segment meter on each channel
  • Individual channel volume controls w/LED display
  • Individual 1/4" unbalanced outputs
  • XLR balanced and 1/4" unbalanced mixed output
  • 110 V/220 V selectable

Pyle PDWM5500 Specifications

System: Carrier Frequency VHF 160-280MHz
Stability: +/- 0.005%
System: Modulation VHF
System: Frequency Response 40Hz to 20kHz
System: Signal-to-Noise Ratio > 60dB
System: SPL > 100dB
System: Distortion < 0.5%
System: Range 240' (73.15m)
Transmitter: RF Output Power 10mW Max
Transmitter: Spurious Suppression 40dB
Transmitter: Antenna Built-in
Transmitter: Battery 1.5V AA x3
Transmitter: Battery Current Drain 15mA (approx.)
Transmitter: Battery Life 12 Hours (approx.)
Receiver: Mode Crystal Frequency Lock
Receiver: Sensitivity 40dBu (S/N=60dB)
Receiver: Signal-to-Noise Ratio > 60dB
Receiver: Audio Output Level 400mV Max
Receiver: Power AC 110V/220V
