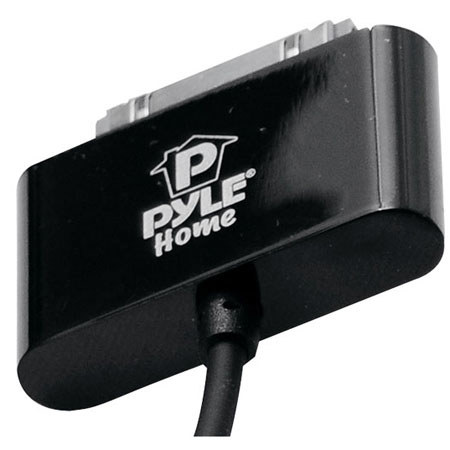

Pyle Headphone Amplifier for iPod/iPhone

Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$18.00 List Price

Our Price

Add to Wishlist In Stock

About the Pyle PHE1AB

The Pyle PHE1AB iPod/iPhone headphone amplifier plugs into your iDevice's 30-pin dock connector and amplifies the line-level output for a higher-quality signal. The Texas Instruments amplifier creates a high-power output to drive high impedance or low sensitivity headphones or earphones. Plus it has a volume control remote, so you can control your iPhone or iPod from the headphones with your player in your pocket. Clip it onto anything using the built-in clip. It's powered by your iPhone or iPod, so no battery is required.

Summary of Customer Reviews

Customers most agreed on the following attributes:
Reviewer Profile:
Pro audio / DJ / mixing (1)

Pyle PHE1AB Features

  • Designed for iPod/iPhone
  • Improves the sound quality with the line out from the dock
  • Built-in high quality Texas Instruments' headphone amplifier Integrated Circuit
  • High power output to drive high impedance or low sensitivity headphones or earphones
  • Easy control of the playback of the iPod/iPhone while the player stays securely in your pocket
  • Compatible with iPod Nano, iPod Video, iPod Touch, iPhone, all generations & all versions
  • Easy & simple to use, plug and play
  • Powered by the iPod/iPhone (no charging or battery needed)
  • With a built-in clip, you can clip it onto anything

Pyle PHE1AB Specifications

Compatibility iPod, iPhone, iPod Nano, iPod Video, iPod Touch
Output Power 100mW (16 ohms Loaded), 12mW (300 ohms Loaded)
Signal to Noise Ratio 98dB (A weight)
Distortion <0.009% (10mW)
Frequency Response 10Hz - 80KHz
Suitable Headphone Impedance 16 ohms - 300 ohms
Power Supply Use iPod/iPhone power 3.3V
AMP dock 33.8 x 30.8 x 7.8mm / 1.33 x 1.21 x 0.31"
Length 800mm (31.4")
Dimensions Line control: 48mm x 14mm x 10.7mm (1.88" x 0.55" x 0.42")
AMP dock: 33.8mm x 30.8mm x 7.8mm (1.3" x 1.21" x 0.30")
Weight 20g (0.70 oz)
