Pyle

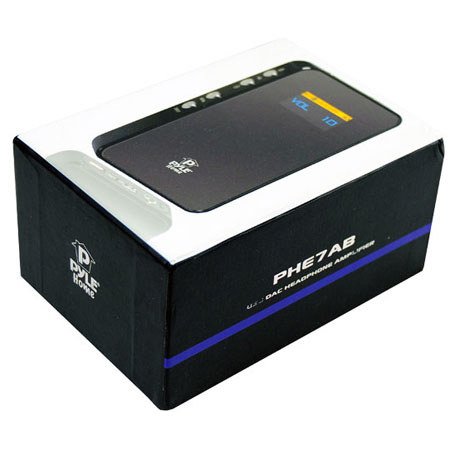

Pyle USB DAC Headphone Amplifier, 10 Hz - 1000 kHz Frequency Range

SKU: PYPHE7AB MFR: PHE7AB
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$70.00 List Price

Our Price

$56.04
Qty:

Add to Wishlist In Stock

About the Pyle PHE7AB

The Pyle PHE7AB is a portable headphone amplifier that also functions as a USB soundcard for your PC. Bypass your PC or Mac's existing DAC circuit and use the high-quality Wolfson DAC for a cleaner, more accurate sound. This headphone amplifier utilizes Texas Instruments amplifier technology for high performance, good resolution, low distortion and powerful output. You can use the 3.5 mm jack and included short cable to hook up with a conventional digital music player. The built-in EQ has three levels of bass boost. The battery charges automatically when you plug in to a USB port. Built from quality anodized aluminum with a satin finish and includes a rubber case.

Pyle PHE7AB Includes

  • Pyle USB DAC Headphone Amplifier
  • Rubber Case
  • Pyle 1 Year Warranty

Pyle PHE7AB Features

  • USB audio decoding and output for PC, functioning as a high quality external USB soundcard
  • Texas Instruments' PCM2706 serves as USB receiver. For better sound quality, a Wolfson WM8740 serves as digital-to-analog convertor (DAC), pairing with a high performance operational amplifier from ADI for the DAC circuit
  • Built-in headphone amplifier utilizing AD8692 and Texas Instruments' TPA6130A as pre- and power-amp for high performance, good resolution, low distortion and powerful output
  • Standard 3.5mm stereo line-in jack for portable amplification with conventional audio source
  • Dual 3.5mm headphone output jack. Convenient design makes it easy to share music between two listeners
  • Easy to use digital volume control function with great precision and channel balance
  • Built-in EQ for 3 levels of Bass Boost
  • Built-in rechargeable 1050 mAH Li-ion battery for 80 hours of continuous operation
  • Quality anodized aluminum satin finish case design, small and compact, ideal to be wrapped together with digital audio player
  • User selectable USB charging function to help prolong battery lifespan and lower distortion from power supply circuit
  • User definable startup volume memory and maximum volume limiter to protect user from hearing damage due to loud volume
  • Automatic keylock feature
  • User definable sleep timer function and total runtime display

Pyle PHE7AB Specifications

Output Power 150mW (16O)16mW (300O)
Headphone Impedance Range 16 Ohm - 300 Ohm
SNR 95dB (A weight) on line-in, 100dB (A weight)on USB-in
Distortion <0.009% (10mW)on line-in, <0.008% (10mW) on USB-in
Frequency Range 10Hz - 1000KHz
Power Supply Rechargeable Li-ion battery
Recharging USB 5V DC 400mA
Dimension 96mm x 55mm x 15.5mm (3.77" x 2.16" x 0.61")
Weight 100g (3.52 oz)
