About RCF TTL11A

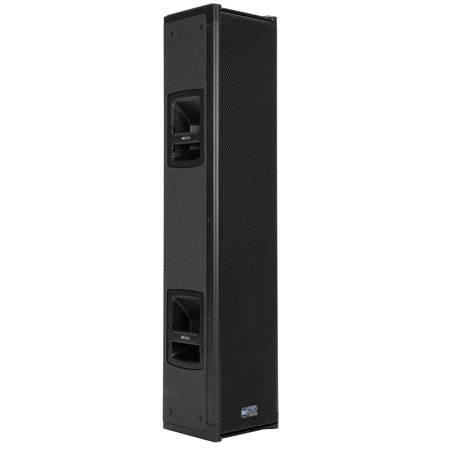

The RCF TTL11A is an active column speaker array system composed by two modules, one for the mid-high and one for the bass frequencies. The TTL11A-H is the HF module and is equipped with four 2.5" neodymium compression drivers with 1.5" exit throat. The TTL11A-B is the bass frequency section of the system and features four 8" neodymium woofers with 2.5" voice coil for a perfect and powerful mid-bass response. With the addition of the new TTS26-A subwoofer, the TTL11A system becomes a powerful, compact and high definition live sound system.

RCF TTL11A Features

  • 4000 Watt, 9 way amplification
  • 4 x 1.4" titanium dome neo c. drivers, 2.5" v.c
  • 3 x 8" neo midranges, 2.5" v.c
  • 4 x 8" neo woofers, 2.5" v.c
  • 96 KHz, 32 bit DSP processing
  • Digital steering down to -10deg
  • 1deg. step steering control
  • Beam forming, time delay controls

RCF TTL11A Specifications

Frequency Response -3 dB
60 Hz - 20 kHz
Max SPL
136 dB
Horizontal coverage angle
90deg.
Vertical coverage angle
10deg. to 40deg.
Compression Driver
4 x 1.4" titanium dome neo c. drivers, 2.5" v.c.
Midrange
3 x 8" neo midranges, 2.5" v.c.
Woofer
4 x 8" neo woofers, 2.5" v.c.
Input signal
Bal/unbal
Input connectors
XLR, RDNet ready
Output connectors
XLR, RDNet ready
Input sensitivity
-2 dBu / + 10 dBu
Crossover frequencies
350 Hz - 1300 Hz
Protections
Thermal, Excurs, RMS
Limiter
Soft limiter
Controls
DSP controlled
Total power
4000 W
High frequencies
4 x 250 W
Mid frequencies
3 x 350 W
Low frequencies
2 x 1000 W
Cooling
Convection
Connections
Powercon in/out
Cabinet Material
Baltic birch
Hardware
Multi-functional
Handles
4 on side, Top, Bottom
Dimensions (H x W x D)
2396 x 261 x 242 mm / 94.3 x 10.2 x 9.52"
Weight
76 kg / 167.5 lbs
