Rolls ADB2 Active Direct Box Interface, 9-48 V Phantom
See all Rolls items

Rolls ADB2 Active Direct Box Interface with 9-48 V Phantom Power Support, Attenuator and Ground Lift Switches

SKU: ROLADB2
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Rolls ADB2 Specifications

  • Input Connections

    2 x 1/4" TS phone (unbalanced)

  • Output Connectors

    1 x XLR

  • Input Level

    -10 to +40dB

  • Output Level

    -10 to +2dB

  • Frequency Response

    1Hz to 50kHz

  • Noise

    S/N: 100dB

  • Power

    9 to 48V phantom power

  • Dimensions (W x D x H)

    5" x 3 1/2" x 2" / 12.70 x 8.89 x 5.08 cm

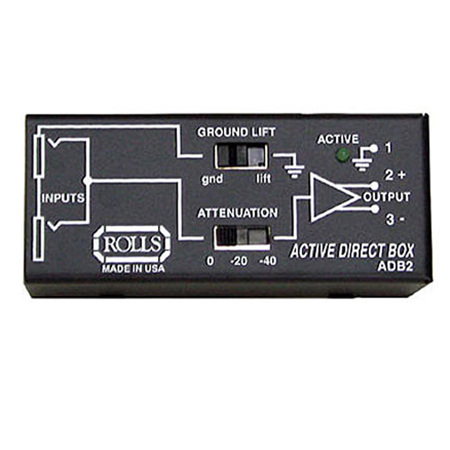

About Rolls ADB2

The Rolls ADB2 is designed for sending unbalanced signals (up to +40dB) to a mixing console or other professional input device. The unit has no transformer, so stray field pickup is nonexistent. The unit is powered by standard microphone phantom power from 9 - 48VDC and uses discrete low-noise differential drivers to make it very quiet. The unit has two 1/4 inch TS phone input jacks wired in parallel, a male XLR output jack, a ground lift switch and a three-position attenuator switch.

Rolls ADB2 Features

  • Active direct box
  • Attenuator switch for connection to line level or speaker level signals
  • Uses standard 9 to 48V phantom power
  • Ground lift switch for "hum" reduction

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Active direct box
  • Attenuator switch for connection to line level or speaker level signals
  • Uses standard 9 to 48V phantom power
  • Ground lift switch for "hum" reduction
  • Ground lift switch for hum reduction
