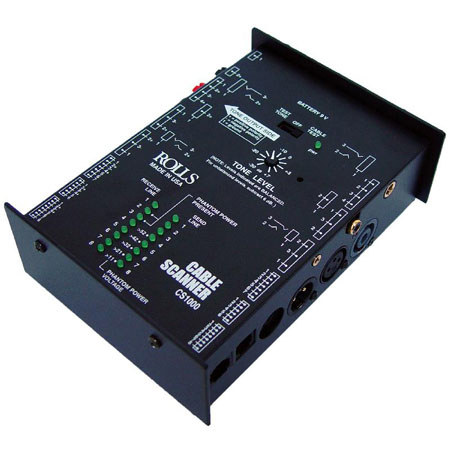

About the Rolls CS1000

The Rolls CS1000 Cable Scanner & Complete Cable Tester from Rolls is a device designed to test up to ten different types of cable ends. Each cable tested with the unit undergoes a pin-out scan for continuity and proper polarity. It features a 1kHz test-tone oscillator with a calibrated variable-level control.

The tester can also send out balanced test signals on one side of the unit to verify proper operation of audio equipment. Audio test readings can be monitored with headphones or speakers. RJ connectors permit phone lines and other installed wiring to ring out. This unit also offers phantom-power-voltage and polarity testing.

Rolls CS1000 Features

  • Cable & Line Testing: Test up to (10) different types of cable with this versatile unit
  • Pin-Out Scan: Each cable tested with the unit undergoes a pin-out scan for continuity and proper polarity
  • Test-Tone Oscillator: The tester offers a 1kHz test-tone oscillator with a calibrated variable-level control

Rolls CS1000 Specifications

Construction Metal
Compatibility Cable Types: Banana
RCA
1/4"
1/8"
XLR female
XLR male
MIDI
RJ11
RJ45
Scan rate 300mS per LED
Test Tone frequency 1 kHz
Test Tone level -30 dB to + 7 dB balanced
Tone output impedance 100 Ohms unbalanced
200 Ohms balanced
Battery Life Estimated at 6 hours
Indicators x17 LEDs
Dimensions 6.95 x 4.65 x 2.275" / 17.65 x 11.8 x 5.78 cm
Weight 2.8 lbs / 1.27 kg
