Rolls MB35 USB DI/Level Matcher, Stereo Direct Box, Stereo RCA to Stereo XLR, USB Input/Output for Connection to USB 1.0 or USB 2.0

SKU: ROLMB35 MFR: MB35
Please note! This item will be Drop-shipped to you directly from the Manufacturer/Distributor.
Estimated Delivery time is from 1 to 2 weeks.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$160.00 List Price

Our Price

$99.90 $4 per week
Qty:
Add to Wishlist

About the Rolls MB35

The Rolls MB35 is a line level audio device that converts consumer level stereo RCA signals to balanced XLR professional line level signals and vice versa. The unit is useful for video duplication and audio recording studio applications; for example, connecting a consumer VCR to a professional video deck, or an off-the-shelf CD player to a professional mixing console or recorder.

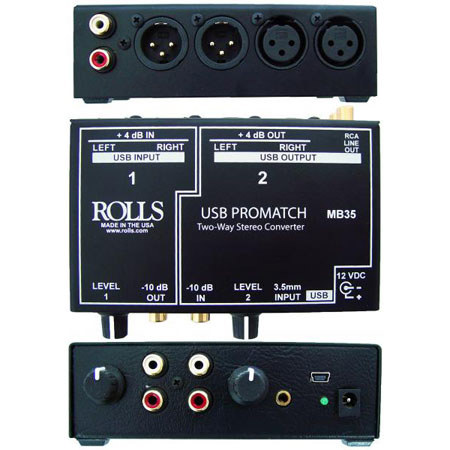

The unit offers front-panel stereo RCA inputs and outputs, along with a 3.5mm input and a USB connector. Rotary volume controls are provided for each channel. The rear panel has an RCA line output, along with XLR input and output connectors. Additionally, the unit functions as a balanced XLR line level control. By adding a stereo pair of jumper cables between the 4 RCA jacks (connecting ins to outs), the level controls may be inserted into any balanced XLR line.

Rolls MB35 Includes

  • Rolls MB35 USB DI/Level Matcher
  • Power Supply
  • Owner's Manual
  • Rolls 1 Year Limited Warranty

Rolls MB35 Features

  • Stereo Direct Box
  • Stereo RCA to stereo XLR
  • Stereo Level control for each channel
  • Works as stereo balanced line level control
  • 1/8" Headphone level to line level adaptor
  • USB input/output for connection to USB 1.0 or USB 2.0
  • USB uses BurrBrown chip set
  • Bidirectional line level audio signal converter and stereo direct box converts from consumer to professional and professional to consumer levels
  • Allows for connection of consumer level products such as camcorders, CD and cassette players to professional level recorders, mixing consoles and signal processors
  • Standard stereo XLR and RCA inputs and outputs with dedicated stereo level control knobs
  • Double duty functionality as balanced inline level control, achieved by patching RCA inputs and outputs together
  • Additional 3.5mm and USB input connectors

Rolls MB35 Specifications

Maximum Input Level +22dB, Balanced and Unbalanced
Maximum Output Level +18dB, Balanced
D110+12dB, Unbalanced
Input Connectors 2 x 3-pin XLR Female, Balanced
2 x RCA Phono, Unbalanced
1 x 3.5mm Stereo Input
1 x USB Port
Output Connectors 2 x 3-pin XLR Male, Balanced
2 x RCA Phono, Unbalanced
1 x RCA Line Output
Input Impedance 10 kOhms (XLR and 3.5mm)
100 kOhms (RCA)
Output Impedance 100 Ohms
Noise Floor -88 dB
THD .003%
Power 12 VDC adapter (center negative)
Dimensions 4.15 x 2.46 x 1.55" (105 x 64 x 39mm)
Weight 1 lb (0.45kg)
