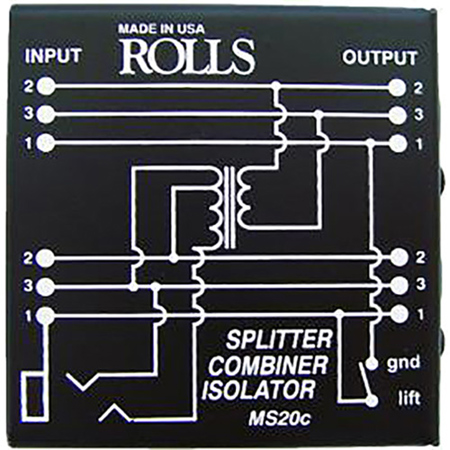

The Rolls MS20C Splitter / Combiner / Isolator will split a single balanced XLR signal into two isolated signals, combine two balanced XLR signals together into a single, or simply isolate a balanced line for buzz or hum elimination. Please note that when combining two condenser microphones, phantom power voltage is passed to only one of the microphones due to the internal isolation transformer.
|Input Impedance||XLR: 600 Ohms, 1/8" (3.5mm) 10K Ohms|
|Output Impedance||600 Ohms|
|Frequency Response||35 Hz - 20 kHz|
|Max Level||+26 dBm|
|Dimensions (L x W x H)||3 x 2.3 x 1.2" (7.6 x 5.8 x 3 cm)|
|Weight||0.6 lbs (0.2 kg)|
