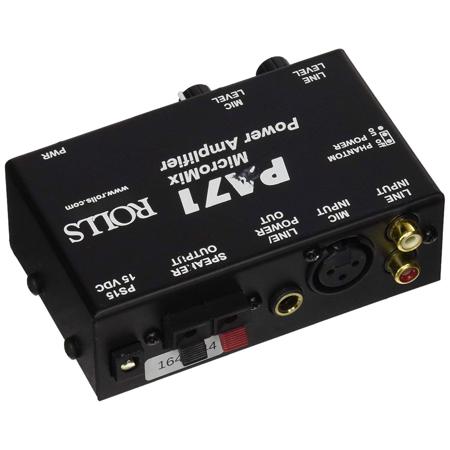

Rolls PA71 MicroMix Power Amplifier, 1 XLR, 2 RCA
See all Rolls items

Rolls PA71 MicroMix Power Amplifier, 1 XLR and 2 RCA Inputs

SKU: ROLPA71
Be the first to review this item

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Rolls PA71 Specifications

  • Power Rating

    5 watts into 8 ohms

  • Damping Factor

    No

  • Input Sensitivity

    28 mV

  • Input Impedance

    47k ohm unbalanced

  • Gain

    40dB

  • Frequency Response

    20Hz to 25kHz

  • Total Harmonic Distortion (THD)

    0.05% typical

  • Input Connections

    1 x XLR microphone, 2 x RCA coaxial

  • Output Connectors

    1 x Pair spring loaded speaker terminals
    1 x 1/4" TRS phono

  • Controls Front Panel

    2 x Rotary level controls

  • Controls (Rear)

    Phantom Power jumper (side panel)

  • Indicators

    1 x Power LED

  • Specialties

    12 volts phantom power for use with condenser microphones

  • Dimensions

    4.25" x 2.375" x 1.5" / 10.79 x 6.01 x 3.81 cm

  • Weight

    1 lb / 454 g

0 Accessories for Rolls PA71 MicroMix Power Amplifier, 1 XLR and 2 RCA Inputs

About Rolls PA71

The Rolls PA71 mixes an XLR microphone signal with stereo (mixed to mono) RCA signals. The combined signal is sent to spring loaded output terminals via a seven watt power amplifier. The unit also features a 1/4" Line/Powered output. The XLR input features switchable 12VDC phantom power. This unit is ideal for small room applications where a simple mix of a microphone with a cassette or cd player is needed.

Rolls PA71 Features

  • A desktop power amplifier for powering small speakers in small environments
  • Stereo input and mono output of 5 watts into 8 Ohms
  • XLR microphone input with switchable 12v phantom power
  • Pair of RCA coaxial inputs for connecting a cassette or CD player
  • 12VDC Phantom power
  • Low noise, efficient operation

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • A desktop power amplifier for powering small speakers in small environments
  • Stereo input and mono output of 5 watts into 8 Ohms
  • XLR microphone input
  • Pair of RCA coaxial inputs for connecting a cassette or CD player
  • 12VDC Phantom power
  • Low noise, efficient operation

What's in the box:

  • Rolls PA71 MicroMix Power Amplifier
  • External Power Adapter
  • Rolls 1 Year Parts and Labor Limited Warranty
