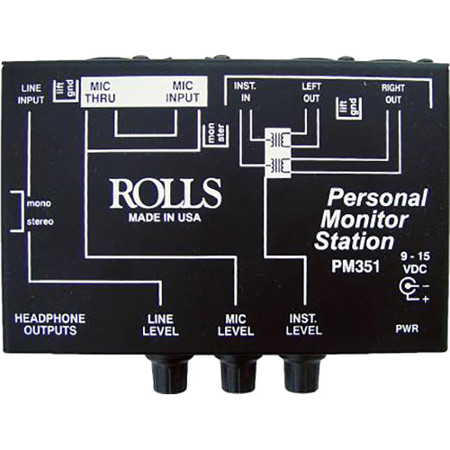

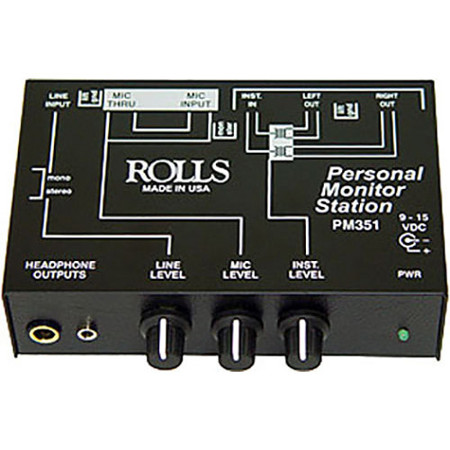

The Rolls PM351 is a handy utility device designed to make the lives of studio and stage musicians a little easier. The PM351 is a personal monitor center that allows musicians and vocalists to monitor and control their own audio level against the entire mix. XLR microphone, 1/4" phone line and 1/4" phone instrument inputs are provided.
Three volume controls provide control over microphone signal, instrument signal and line level signal. 1/4" phone out and XLR thru provide output to main mixers, recorders, etc. The rugged PM351 is a popular choice among drummers who need to monitor a click track. Overall the PM351 will prove suitable for any musician in recording and sound reinforcement scenarios.
|Input Connections||Microphone: 3-pin XLR
Instrument: 1/4 inch Phone Line: 1/4inch TRS Phone
|Output Connectors||Microphone Thru: 3-pin XLR Line Left/Right: 1/4 inch TRS Phone|
|Maximum Input/Output Gain||20dB 1/4 inch, 50dB XLR
Max Input Level: -20dB XLR, +40dB Line, +15dB Instrument
|AC Power Requirements||9 - 16V DC|
|Dimensions (W x H x D)||4.5 x 3.3 x 1.5 inch / 114.3 x 83.82 x 38.1 mm|
|Weight||1.0 lbs / 0.45 kg|
