Rolls

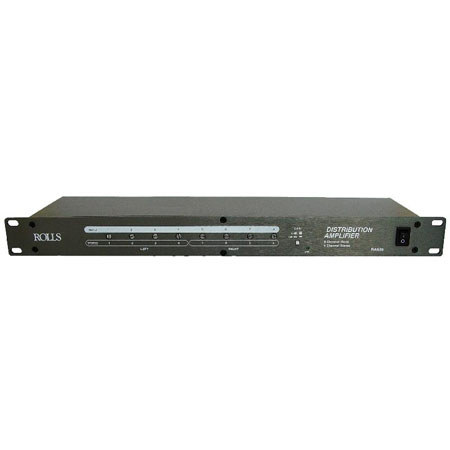

Rolls RA63S 8 Mono Channel/4 Stereo Channel Distribution Amplifier

SKU: ROLRA63S MFR: RA63S
Please note! This item will be Drop-shipped to you directly from the Manufacturer/Distributor.
Estimated Delivery time is from 1 to 2 weeks.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$149.95 $6 per week
Qty:
Add to Wishlist

Protect your investment

About the Rolls RA63S

The Rolls RA63S distributes a mono signal to eight outputs, or a stereo signal to four right and left outputs. The inputs and outputs may be connected balanced or unbalanced. Used in schools, churches, warehouses and factories to name a few, the R A63s delivers clean, high powered signals to separate locations.

Rolls RA63S Includes

  • Rolls RA63S 8Mono/4Stereo Channel Distribution Amplifier
  • Power Supply
  • Rolls 1 Year Parts and Labor Limited Warranty

Rolls RA63S Features

  • 8 channel Mono operation, or 4 channel Stereo operation
  • Internal jumper configures the unit for Mono or Stereo mode
  • Screw-terminal inputs and outputs
  • Secure screw-driver adjustable level controls
  • 20 dB Gain switch
  • FR4 Double-sided epoxy circuit board
  • Socketed ICs

Rolls RA63S Specifications

Input Impedance 100 Kohms balanced
Max Input Level +22 dBV
I/O Connectors Screw terminal; +, - and ground
Output Impedance 50 ohms balanced
Max Output Level +24 dB
Max Gain 20 dB
S/N Ratio >90 dB
Frequency Response 10 Hz - 40 kHz, +/- 1 dB
THD <.008%
Power 120 VAC 50-60 Hz, 15VA
Dimensions 19" x 1.75" x 6.5" / 48 x 4.5 x 17 cm
Weight 7 lbs / 3 kg
