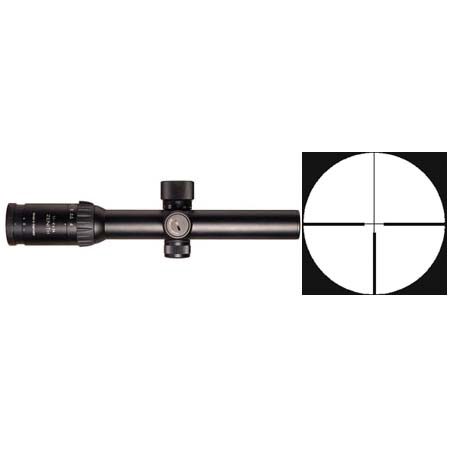

Schmidt & Bender 1.1-4x24mm Zenith Short Dot LE Police Marksman II Series Riflescope, Matte Black Finish with Illuminated # 7 Reticle, 30mm Tube.
What's Included With This Item:
- 10 Year USA Warranty, Instructions
• Our Police Marksman II riflescopes are in use around the world, from crowded urban environments to the most brutal desert, by highly trained shooters who know that a life perhaps even their own can depend upon the quality of their optics.
• 1.1 - 4 x 24 Short Dot Police Marksman II: A separate turret with 11 click stops controls the illumination function of a precise red dot at the center of the reticle. Fully variable illumination levels range from barely visible, for use with night vision equipment, to full bright for quick, accurate shots in bright, harsh daylight. With illumination switched off, the Short Dot functions as a standard scope with non-illuminated crosshairs. This is the first time that all possible applications of different illuminated reticle technologies have been combined into one riflescope, giving the Short Dot "any light, any time" versatility and reliability in any circumstance the shooter may encounter.
• At lower magnification levels, the Short Dot can be sighted with both eyes open. The full magnification range can be covered in a single 180-degree turn. Available with No. 2 and No. 7 reticles. This version is supplied with the # 7 reticle.
|Magnification||1.1x - 4x|
|Objective / Field of View||24mm / 105' (32.0m) @ 1.1x at 100 yds.(100m), 32.8' (10.0m) @ 4x at 100 yds.(100 m)|
|Main (Center) Tube Diameter||30mm|
|Objective Tube Diameter||1.18", 30.0mm|
|Eyepiece Tube Diameter||1.7", 43.0mm|
|Lens Coatings||Fully Multi-Coated|
|Reticle||Illuminated # 7 Flash Dot|
|Reticle Image Plane (Magnifying)||Second|
|Twilight Performance||Light transmission: minimum 85% day & night|
|Exterior Finish||Matte Black|
|Windage & Elevation Adjustments (MOA)||Elevation Increments: 1/2 MOA per click.
Windage Increments: 1/2 MOA per click.
|Maximum Adjustment||Elevation Range: 26 MOA.
Windage range: ±13 MOA
|Exit Pupil||14.0mm at 1.1x / 5.5mm at 4x|
|Eye Relief||3.35" / 85.0mm @ 1.1x, 3.35" / 85.0mm @ 4x|
|Parallax Correction Control||Parallax Free at 109.4 Yards, 100 Meters|
|Diopter Adjustment||+2 / -3|
|Waterproof / Fogproof||Yes|
|Mounting Length||71mm, 2.8", Eyepiece Side, 76mm, 2.9" Objective Side.|
|Weight||20.1 oz., 570.0g|
|Special Features||Reticle Image in the Second Focal Plane.
Waterproof to 3 meters.
