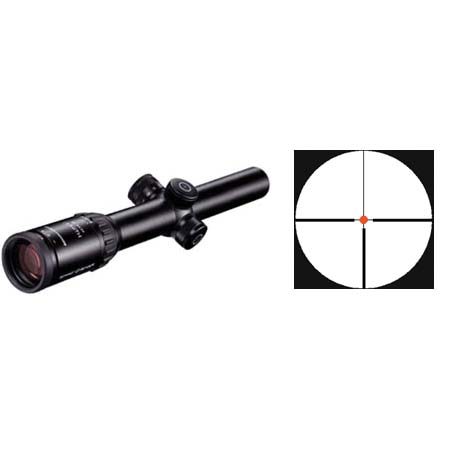

Schmidt & Bender 1.1-4x24mm Zenith Series Riflescope, Matte Black Finish with Illuminated Flash Dot # 7 Reticle, 30mm Tube.

Schmidt & Bender
SKU: RSSBZ11424F7 MFR: 776-811-708

About Schmidt & Bender 1.1-4x24 Rifle Scope

• So distinctive is the design of Schmidt & Bender's Zenith riflescopes, that upon their introduction they earned the prestigious international IF Design Award, and were selected by Field & Stream magazine as the "Best of the Best." Their streamlined elegance results in compact, efficient scopes that complement, not dominate, your rifles.
• The full magnification range can be covered in just one 180 degree rotation a mere half turn of the adjustment dial. Eye relief is a safe and comfortable 90 mm (3 1/2 inches). Our POSICON system provides a graphic indication of the reticle's position and remaining travel within the scope, facilitating mounting, sighting in, and insuring that you retain as much elevation and windage adjustment as possible.
• There is no better choice for dangerous or fast-moving game at close quarters. At lower magnification, an exceptionally wide field of view (36m/100m or 36 yds/100yds) allows you to keep both eyes open while placing a precise shot. The reticle is located in the second focal plane, so its size remains constant throughout the magnification range.



Schmidt & Bender 1.1-4x24 Rifle Scope Features

  • Export of this product outside of the United States of America is not allowed and is controlled by the US Department of State

Schmidt & Bender 1.1-4x24 Rifle Scope Specifications

Magnification
1.1x - 4x
Objective / Field of View
24mm / 96' (29.3m) @ 1.1x at 100 yds.(100m), 30.0' (9.14m) @ 4x at 100 yds.(100 m)
Main (Center) Tube Diameter
30mm
Objective Tube Diameter
1.18", 30.0mm
Eyepiece Tube Diameter
1.7", 43.0mm
Lens Coatings
Fully Multi-Coated
Reticle
Illuminated # 7 Flash Dot
Reticle Image Plane (Magnifying)
Second
Twilight Performance
3.5 / 8.9
Exterior Finish
Matte Black
Windage & Elevation Adjustments (MOA)
.540"
Maximum Adjustment
47" @ 100 yards, 130 cm @ 100 meters.
Exit Pupil
14.1mm at 1.1x / 5.9mm at 4x
Eye Relief
3.7" / 94.0mm @ 1.1x, 3.7" / 94.0mm @ 4x
Parallax Correction Control
Parallax Free at 109.4 Yards, 100 Meters
Diopter Adjustment
+2 / -3
Battery
Cr-2032
Battery Life
100+ hour life.
Material
Aluminum
Nitrogen Filled
Yes
Waterproof / Fogproof
Yes
Length
11.2", (284.5mm)
Mounting Length
7.5"
Weight
16.0 oz., 453.6g
Special Features
Reticle Image in the Second Focal Plane.
