Samson Servo 600 Rack Mountable Power Amplifier, 300W Per Channel @ 4 Ohms, 10 Segment, 3 Color Level LED Meters
The Samson Servo 600 stereo power amplifier has been designed to provide robust, clean output with low distortion and wide dynamic range, along with the dependability demanded by the most professional audio engineers and installers. The convenient 2 rack-space design is compact and yet there's plenty of power available, with 2 x 225 Watts at 8 ohms, 2 x 300 Watts at 4 ohms over the full frequency spectrum, from 10 Hz to 55 kHz.

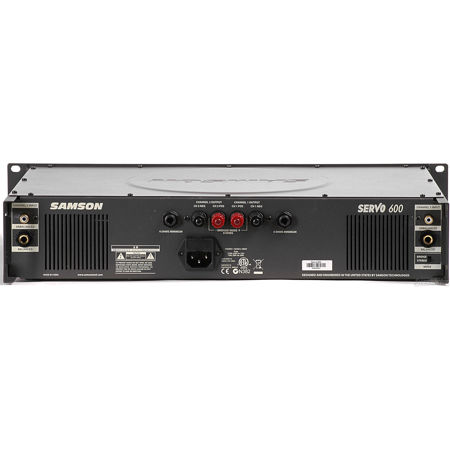

For mono applications, a Bridge mode links both channels of the amplifiers, thus providing even more single channel power, with a power rating of 600 watts into an 8-ohm load. Input connections are available for both unbalanced RCA connections and balanced 1/4" TRS connections. For the outputs, the Servo 600 amplifier provides standard 5-way binding posts and 1/4" phone jacks. Front-panel controls and displays include a power switch with LED indicator, as well as independent left and right channel input level controls. To help you set the correct operating levels, the Servo 600 amplifier includes front panel Signal, Peak and Protection LED indicators. There's also a ten-segment VU meter to help you set a good operating level.
Like all serious power amplifiers, the Servo 600's internal electronics are based around a serious powercore, with an over-sized toroidal transformer and large extruded heat sink. To keep the Servo 600 amplifier running cool, the design employs twin internal wind tunnels with forced-air cooling via two temperature-sensitive, variable speed fans, which greatly reduce the chance of thermal and overheating problems.
Multi-stage protection for power-up, over-heating, over-current, short circuit, low output impedance and DC voltage, assures high reliability under the most demanding situations. The Servo 600 amplifier is road tough with its all steel chassis and 19" rack-mount design.
The Servo 600 amplifier is ready for a life on the road, or to make its home in a fixed installation. Optimized for live sound venues, houses of worship, commercial installations and for driving small and medium-sized live PA systems, the Servo Series amplifiers will deliver reliable power from gig-to-gig, venue-to-venue and day-to-night.
|Stereo both channel driven||8 Ohms: 225 Watts x 2
4 Ohms: 300 Watts x 2
|Bridged mono||8 Ohms: 600 Watts|
|Signal to Noise Ratio (20Hz-20k)||104dB|
|Input sensitivity @8 Ohms||1.24V(4dBu)|
|Output Circuitry Class||AB|
|AC Power||@1/8 rated power 4 Ohms, max: 1.3A
@1/3 rated power 4 Ohms, max: 3.3A
@ rated power 4 Ohms, max: 10A
|Distortion (typical @4 Ohms)||Below rated power: 0.03%
1kHz,rated power: 0.1%
|Frequency Response @8 Ohms, 1Watt||20Hz-20kHz, 0/-0.5dB|
|Damping Factor (400Hz)||350|
|Input Impedance||15k Ohm Unbalanced,
30k Ohm Balanced
|Input Clipping||10 Vrms(22dBu)|
|Cooling||Continuously variable speed, fan forced air|
|Connectors (each channel)||Input: RCA unbalanced and 1/4"(6.3mm)TRS, balanced
Output: 5-way Binding post and 1/4" Phone
|Controls||5-way Binding post and 1/4" Phone|
|Indicators||Power on (blue), Protection
(amber), Signal (green) for
each Ch., Peak(red) for each
Ch. Level:, -24 dB, -20 dB,
-16 dB, -12 dB, -8 dB, -4
dB, -2 dB, O, +2 dB and
+4 dB (PEAK).
|Protection||Short circuit, Thermal, Current
limit, DC offset, Current inrush,
RF protection, Turn on/Turn
|Power Requirements||115/230, 240VAC, 50/60Hz|
|Dimensions (W x H x D)||19" x 3.5" x 11.7" (483mm x 89mm x 297mm)|
|Weight||24 lbs (10.89 kg)|
