Samson

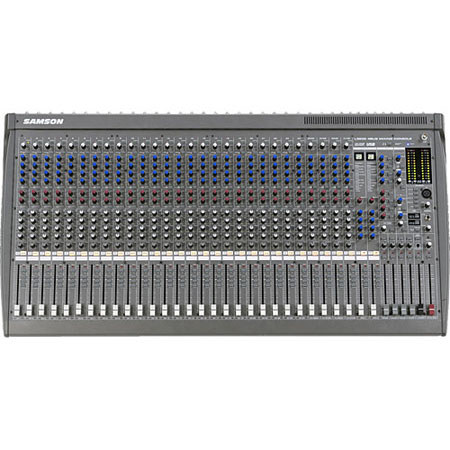

Samson L3200 32 Channel 4 Bus Sound Reinforcement Mixing Console, 20Hz - 20kHz Frequency Response

SKU: SAL3200 MFR: SAL3200
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$999.99 List Price

Our Price

$699.99
Free Shipping
Qty:
Add to Wishlist

Protect your investment

About the Samson L3200

The Samson L3200 32-Channel Sound Reinforcement Mixer is well suited for professional and small live sound applications. With a total of 32 inputs and 4-bus outputs, the L3200 is sure to provide the routing flexibility necessary for modest and complex mixing scenarios.

A USB I/O provides a direct digital connection to popular recording software titles. The USB port is easily assigned to the Main outputs or AUX sends for flexible routing possibilities. A total of 26 microphone and line mono input channels feature a full EQ section.

Four stereo inputs feature 1/4" phone and RCA line connections; two of the four channels feature additional XLR microphone inputs. In addition to all this, two on-board 24-bit effects processors provide 100 presets of reverb, delay, chorus and other usable effects, which eliminate the need for an external effects processor. Assignable group outputs provide flexible channel routing to monitors, recording devices, additional mixers, etc.

The Samson L3200 delivers the sound quality, routing and features that will be sure to please club owners, touring musicians, private sound reinforcement companies, houses-of-worship and more.

Samson L3200 Features

  • 4 Stereo Line Inputs
  • 24 Inserts
  • Large Illuminated Mute Switches
  • Stereo inserts
  • 4 Groups with inserts
  • 3-Band EQ with sweepable mids
  • 6 Aux sends
  • Dual DSP with 100 digital multi-effects
  • 2 Stereo aux return
  • USB I/O (from aux sends or main mix)
  • Input gain trim on each channel
  • 24 dB Low cut filter at 75 Hz
  • 100 mm faders
  • PFL switches
  • AFL switches
  • Phantom power switch (+ 48 V)
  • Mono Out & LPF with sub-woofer containing variable frequency control
  • 2 x 12-segment LED level meter for Main L/R, PFL/AFL. Group 1-4
  • Talkback mic input

Samson L3200 Specifications

Channels 32 Input Channels (24 mono)
XLR Mic 24 mono channels + 4 stereo channels
Maximum Output Level +24dB(MAIN L/R) @10k ohm, +20dB(GROUP, AUX/EFX, CTRL ROOM) @10k ohm
+20dB(INSERT) @10k ohm, More than 100mW(HEADPHONES) @33
T.H.D <0.1% @+14dB 20Hz - 20kHz (MAIN L/R, GROUP, AUX /EFX SEND) @10k ohm
Frequency Response 20Hz - 20kHz, +1/-2dB (MIX L/R, GROUP, AUX /EFX SEND) @10k ohm
Hum and Noise Input -128dBu:equivalent input noise ( Rs=150 ohm)
-95dBu: Residual noise (MAIN L/R, MONO, MAIN B, GROUP, AUX,EFX OUT)
-83dBu: MAIN, MONO, GROUP
-76dBu: AUX Master control at nominal level and all channel control Minimum
Maximum Voltage Gain 74db Mic In To Main L/R, Group, Mono
66db Mic In To Aux (pre)
76db Mic In To Aux (post) / Efx Send
52.2db Mic In To Rec L/R
54db Line In To Main L/R, Group, Mono
46db Line In To Aux (pre)
56db Line In To Aux (post) / Efx Send
44db St In To Main L/R, Group, Mono
16db Aux Return In To Main L/R
27.8db Tape In To Main L/R
Crosstalk (at 1KHz) -70dB between input channels
-70dB between input/output channels (CH INPUT)
Gain Control(mono Input Channel) 44dB Variable (-50dB - -6dB), (-30dB - +14dB)
Gain (stereo Input CH) 40dB Variable (-20dB - +20dB)
High Pass Filter 75Hz, 18 dB/Octave
Input Channel Equalization MONO HIGH: 12kHz shelving 15 dB
MID: 100-8kHz peaking 15 dB
LOW: 80Hz shelving 15 dB
Input Channel Equalization STEREO HIGH: 12kHz shelving 15 dB
HI- MID: 3kHz peaking 15 dB
LO-MID: 500Hz peaking 15 dB
LOW: 80Hz shelving 15 dB
LED Meters 12-point LEDx2 MAIN L/R, PFL/AFL,GROUP(1-4)
Internal Digital Effects 2 x 24 BIT DSP, 100 selectable presets
FOOT switch (ON/OFF)
Channel Indicators Peak: An indicator for each channel turns on when the pre-channel fader signal is 5dB
below clipping
Phantom Power +48V DC
USB Bus Power +5V DC 0.5A max USB A-TYPE FEMALE
Power Source/Power Consumption AC 120V/230V/240V, 50/60Hz
75W
Dimensions (W x D x H) 40.4 x 21 x 6.25" / 1014 x 533 x 162mm
Weight 40 lb. (18.1kg)
