Samson Auro D1800 500 Watts Active Subwoofer, 18" Driver, 126 Hz, 24 dB/Octave Linkwitz-Riley Crossover
Your card will only be charged once item ships.

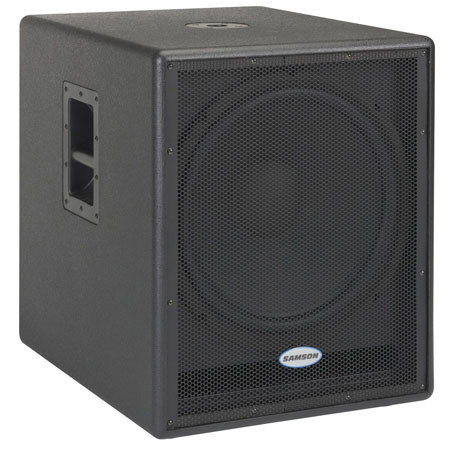

Samson's Auro D1800 Active Subwoofer provides amazing lows that will bring the bottom-end of your PA setup to life. Designed with a Class D amplifier, this subwoofer packs heart-thumping power into a more efficient enclosure ideal for fixed installations, musicians, DJs and general live sound reinforcement. Auro D1800 goes where low-end is a must.
Auro D1800 has an 18" low frequency transducer with a robust 3" voice coil that drives 500 watts of RMS and 1000 watts of peak output power. In addition, its Power, Signal and Peak LED displays provide constant output monitoring.
A fixed frequency (126 Hz, 24 dB/octave) electronic crossover allows you to use Auro D1800's balanced XLR stereo input, as well as its balanced XLR stereo full range and high-pass outputs to run your satellite speakers or daisy chain with additional subwoofers. Use the Normal/Invert phase level control to ensure that the subwoofer is in phase with the rest of your PA system.
To ensure roadworthy durability, Auro D1800 is constructed of solid 3/4" plywood with a professional textured finish. The enclosure also features large metal handles that make transport a breeze, as well as a 35 mm pole mount receptacle.
|Amplifier: RMS Power||500 watts|
|Amplifier: Peak Power||1000 watts|
|Amplifier: THD||< 0.1%|
|Transducer: Driver||18" paper cone, 3" voice coil diameter|
|Transducer: Sensitivity||95dB SPL @ 1w/1m|
|Acoustic Performance: Frequency Response||30Hz- 135Hz (+/-3 dB)|
|Acoustic Performance: Max. SPL||125 dB SPL @ 1000 watts|
|Electronic Crossover: Type||24 dB/oct Linkwitz-Riley|
|Electronic Crossover: Frequency||126 Hz|
|Inputs (L and R)||Balanced Female XLR - Line Level|
|High Pass Outputs (L and R)||Balanced Male XLR - Line Level|
|Full Range Outputs (L and R)||Balanced Male XLR - Line Level|
|Controls||Master Level Rotary, Phase Switch|
|Indicators||Peak, Signal, Power|
|Power Consumption||645 W max.|
|AC Connector||3-pin IEC 250 VAC, 20 A male|
|Fuse||100 - 115 VAC T8AL / 250 V
220 - 240 VAC T4AL / 250 V
|Construction||18 mm plywood|
|Material||Textured black polyurethane paint|
|Casters||4 x Three Inch.|
|Handles||2 x Steel|
|Mounting Method||Integral 1 3/8" (35 mm) Pole Mount Receptacle|
|Dimensions (L x W x H)||20.2" x 25.3" x 24.1" / 513 mm x 643 mm x 612 mm|
|Weight||90.5 lbs / 41.1 kg|
