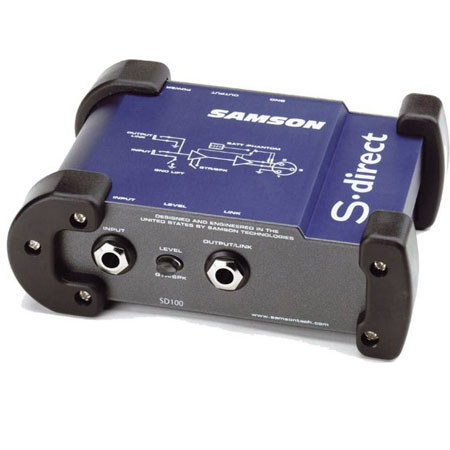

The Samson S-Direct Direct Box offers a variety of DI solutions for live sound and recording applications. You can connect guitars, keyboards, outboard signal processors and even the high-powered speaker output from an amplifier. The S-Direct enables you to take the signal from a guitar or bass guitar and pass the signal from the Link output to the amplifier without affecting the original sound. This can eliminate the need for miking the amplifier.
The S-Direct is also very useful for connecting unbalanced signals from sources like sub-mixers, effects processors and keyboards to a PA or recording mixer. Unlike passive direct boxes, the S-Direct is active (has a power supply), so you can rely on an even frequency response regardless of its output impedance. The S-Direct's balanced output provides a clean signal so long runs of cable are possible.
|Frequency Response||5-35 kHz, -3 dB|
|Noise Level (22-22kHz, Input Shorted)||-104 dBu|
|THD + N (10 Hz -22 kHz)||0.013% typ.@1 VRMS, 1kHz|
|Input Impedance||GTR: > 1 Meg. Ohm
SPK: 10 k Ohm
|Max. Input Level (1% THD)||+8.1 dBu ( 9v. Batt.)
+11.3 dBu (48v. Phantom)
|GTR/SPK Input||1/4" Phone Jack, unbalanced|
|OUTPUT/LINK||1/4"Phone Jack, unbalanced|
|Balanced Output||XLR Connector, balanced|
|Phantom Power||24-48 VDC|
|Dimensions (W x D x H)||5.65" x 4.13" x 2" / 14.3 x 10.4 x 5.08 cm|
|Weight||15 oz / 425.2 g|
