Samson

27% Off
Samson SM10 Rackmount 10-Channel Line Mixer, 10 Hz - 23 kHz Frequency Response

SKU: SASM10 MFR: SASM10

Our Price

$199.99
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

List Price: $274.99

Availability: In Stock & Ready to Ship

Free Expedited Shipping

See all shipping options

Ways To Save

Product Highlights

  • 10 input channels - Two Mic/Line plus ten stereo line
  • Low noise, discrete microphone pre-amplifiers with 48-Volt phantom power
  • Balance controls
  • Two auxiliary sends can be used to route signals to external effects
  • Front-panel headphone and mono output jack with dedicated level controls
  • Flexible headphone and six-segment LED meter source control
  • Line Input Level switch for +4 dBu or -10 dBV line level input signals
  • Electronically balanced main stereo XLR and 1/4 line outputs

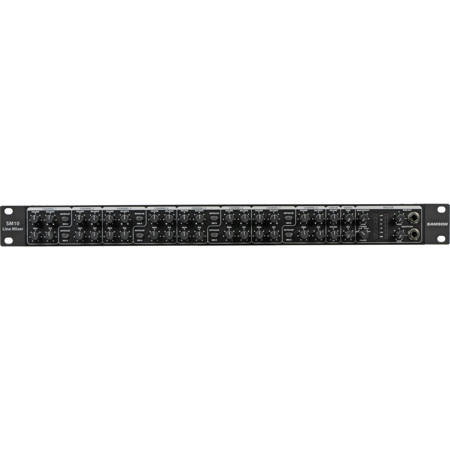

Samson SM10: Picture 1 regular $199.99

About Samson SM10

The Samson SM10 Line Mixer is a versatile and reliable addition to your audio setup. This internally powered, 19" rack-mount metal chassis unit can be easily integrated into any existing system to more efficiently group your signals.

The SM10 features ten channels with 1/4" stereo line inputs and a balance control for each channel. Two channels include XLR mic inputs. This allows you to blend the relative levels of stereo inputs to your liking. In addition, each channel includes a switch for +4 dBu or -10 dBV line level input.

For output, the SM10 provides electronically balanced main stereo XLR and 1/4" line outputs. The SM10 provides versatile signal routing via Main Mix, Mix B, Monitor and EFX bus outputs, as well as low noise and discrete microphone pre-amplifiers with 48-volt phantom power.

Two auxiliary sends can also be used to route signals to external effects, or create a separate mix for on-stage monitors. The SM10 features front panel headphone and monitor outputs with dedicated level controls. The mix may be audited with the SM10's 6-segment LED meter and a flexible meter/headphone source control. The generously featured SM10 Line Mixer is right at home on stage, in studios, boardrooms, health clubs, restaurants, houses of worship and more. Whether your interests lie in audio or video applications, the SM10 Line Mixer brings various signals together for an amazing audio experience.

Samson SM10 Features

  • 10 input channels - Two Mic/Line plus ten stereo line
  • Low noise, discrete microphone pre-amplifiers with 48-Volt phantom power
  • Versatile signal routing via Main Mix, Mix B, Mon, EFX bus outputs, as well as mono output
  • Balance controls for each channel that allow you to blend the relative levels of stereo inputs
  • Two auxiliary sends can be used to route signals to external effects, or to create a separate mix for on-stage monitors
  • Front-panel headphone and mono output jack with dedicated level controls
  • Flexible headphone and six-segment LED meter source control allows you to monitor the MON, EFX, MIX B and MAIN MIX
  • Line Input Level switch for +4 dBu or -10 dBV line level input signals
  • Electronically balanced main stereo XLR and 1/4" line outputs
  • Center detents for all input controls, for use in low-light situations such as live performance
  • Single 19" rack-mount metal chassis with internal power supply, easily integrated into any existing system
  • Quality built and rugged construction ensure reliable performance from venue to venue and session to session

Samson SM10 Specifications

Microphone
XLR balanced (2)
Line
1/4" TRS balanced (Ch 1-8), 1/4" stereo (Ch 9-10)
Input Impedance
Mic: 1.5K Ohms
Line: 23K Ohms (+4 dBu, Ch 1-8)
40K Ohms (-10 dBV, Ch 1-8)
20K Ohms (Ch 9-10)
Maximum Gain
Mic: 65 dB
Line: 39 dB
Line Operating Level
+4 dBu / -10 dBV selectable
Maximum Input Level (1 kHz, ±3 dB)
Mic Input: -4 dBu
Line Input: +28 dBu
Equivalent Input Noise
- 123 dBu unweighted
Main Outputs Type
1/4" TRS balanced (2), XLR (2)
Output Impedance
200 Ohms Main Out
Gain Range
-infinity to +15 dB
Max output level
+22 dBu
MON (Pre Fade Out)
1/4" impedance balanced mono output (front panel), Stereo MON (rear panel)
EFX (Post Fade Out)
1/4" unbalanced
EFX: Output Impedance
100 Ohms
Headphone
1/4" TRS Stereo
Output (600 Ohm load)
100 mW
Frequency Response
10 Hz - 23 kHz ±1 dB
Signal-to-noise ratio
> 90 dB typical
THD
<0.01% typical
Crosstalk (1 kHz)
-70 dB between input channels
-70 dB between input/output channels
Phantom Power
48 Volts DC
Power Requirements
120-240 VAC / 50-60 Hz
Dimensions (L x W x H)
19" x 8.25" x 1.75" / 482.6mm x 209.55mm x 44.45mm
Weight
6 lbs / 2.7 kg
Mfr #
SASM10
SKU
SASM10
