Samson

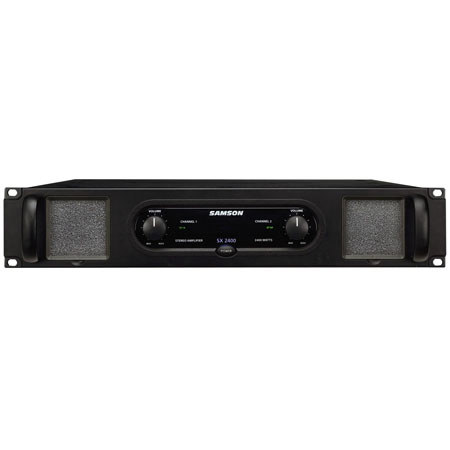

Samson SX2400 2-Channel Rack-Mount Power Amplifier with 2x550 Watts at 8 Ohm and 2x750 Watts at 4 Ohm

SKU: SASX2400 MFR: SASX2400
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$584.99 List Price

Our Price

$449.99
Free Shipping
Qty:

Add to Wishlist

Protect your investment

About the Samson SX2400

The Samson SX2400 stereo power amplifier has been designed to provide robust, clean output with low distortion and wide dynamic range, along with the dependability demanded by professional audio engineers and installers. The convenient two rack space design is compact and yet there's plenty of power available, with 2 x 550 watts at 8 ohms and 2 x 750 watts at 4 ohms. For mono applications, a bridged mode links both channels of the amplifiers, thus providing even more power, with a power rating of 1500 watts for the SX2400 into an 8 ohm load.

Input connections are made via combination connectors allowing for both balanced XLR and balanced 1/4" TRS connections. For the outputs, the SX2400 amplifier provides standard 5-way binding posts, as well as Speakon connectors. Front panel controls and displays include a power switch with LED indicator, as well as independent left and right channel input level controls.

Samson SX2400 Includes

  • Samson SX2400 2-Channel Rack-Mount Power Amplifier
  • AC Power Cable
  • Owner's Manual
  • Samson 1 Year Limited Warranty

Samson SX2400 Features

  • Professional High Power, Class H, Rail-switching Amplifier
  • 550 Watts per side at 8 ohms
  • 750 Watts per side at 4 ohms
  • 1500 watts at 8 ohms in bridged mono
  • Dual Variable-speed Fan Cooling System
  • Signal, Peak and Protection Circuit Indicators
  • 5-way Binding Post and Speakon Speaker Outputs
  • XLR and TRS Input Connections
  • Dual Rack Space Design

Samson SX2400 Specifications

Power Rating 500W @ 8Ohm Stereo (per channel)
750W @ 4Ohm Stereo (per channel)
1500W @ 8Ohm Bridged-Mono
Damping Factor 350 (400Hz)
Input Sensitivity 1.24V (4 dBu)
Input Impedance 15 k ohms Unbalanced
30 k ohms Balanced
Gain 34dB
Frequency Response 20Hz - 20kHz (0/-0.5dB @ 8 ohms, 1W)
5Hz - 60kHz (0/-3dB @ 8 ohms, 1W)
Signal-to-Noise Ratio 104dB (20Hz - 20kHz)
Total Harmonic Distortion (THD) 0.01% or Less
Input Connections 2 x XLR/1/4" Combo Jacks
Output Connectors 2 x 5-way Binding Posts
2 x Speakon Connectors
Controls Front Panel 2 x Volume Control Knobs
1 x Power Switch
Controls (Rear) 1 x 3-Way Bridge/Stereo/Parallel Switch
1 x 15 Amp Circuit Breaker Switch
Indicators 1 x Blue Power On LED
1 x Amber Protection LED
2 x Green Signal LEDs
2 x Red Peak LEDs
Camera Resolution Dual Variable-Speed Fans
Power Consumption 7A @ 1/8 Power, 4 ohms
14.5A @ 1/3 Power, 4 ohms
26A @ Rated Power, 4 ohms (Max)
Power Requirements 100/115/220/230/240 VAC, 50/60 Hz
Dimensions 19 x 3.5 x 16" (482 x 89 x 406mm)
Weight 40 lbs (18 kg)
