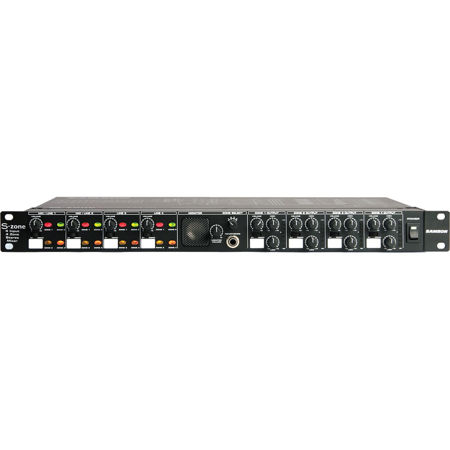

The Samson S-Zone is a professional quality 4-channel zone mixer that allows you to mix just about any audio signal including those from microphones, stereo CD and tape players, video players and then lets you distribute an independent mix to any of the four stereo zones. Each of the input channels is assignable to any or all of 4 stereo zones outputs via easy to use, LED backlit switches.
The microphone inputs can be set to "duck" the zone inputs so that the background music automatically turns down when an announcement is made. On each the S-Zone's outputs, you'll find a convenient two-band equalizer allowing you to adjust the overall tonal response of each zone.
A six-segment LED bar VU meter is present on all outputs providing a visual display of the level of each zone. Perhaps the most unique feature of the S-Zone is its front panel monitor section. The zone assignment switch, headphone jack, level control and internal super speaker allow you to monitor the signal that is playing in any zone directly on the S-Zone, without having to physically be in the room that signal is playing in.
The handy scribe strip for both the inputs and outputs make it easy to label the connected gear and the rooms the S-Zone is feeding. For easy installation, all the S-Zone connections are made with standard Euroblock connection strips.
|Input Impedance: Mic||600 ohm XLR balanced|
|Input Impedance: Line||22K ohm|
|Max Input Level: Mic||-11.7 dBu balanced|
|Max Input Level: Line||+26 dBu|
|Maximum Gain: Mic||60 dB|
|Maximum Gain: Line||26 dB|
|Output Level||+21 dBu max|
|Output Impedance: Balanced||200 Ohms|
|Output Impedance: Unbalanced||100 Ohms|
|Max. S/N ratio||96 dB|
|CMRR||>52 dB (Mic)|
|Phantom power||+15 VDC|
|Tone Controls: LOW||+/- 15 dB at 100 Hz|
|Tone Controls: HIGH||+/- 15 dB at 10 kHz|
|Connectors: Inputs||6 PIN Euroblock|
|Connectors: Outputs||9 PIN Euroblock|
|Power Supply (USA/Canada)||-120 V AC, 60 Hz|
|Power Supply (U.K/Australia)||-240 V AC, 50 Hz|
|Power Supply (Europe)||-230 V AC, 50 Hz|
|Fuse||100-120 V AC; 315 mA (slow-blow)
200-240 V AC: 160 mA (slow-blow)
|Power Consumption||5 Watts|
|Power inlet||Standard IEC receptacle with fuse|
|Dimensions (W x D x H)||19" x 9.25" x 1.75" / 48.2 x 23.4 x 4.44 cm|
|Weight||5.1 lbs (2.31 kg)|
