SBIG SG-4 Autoguider, 640x480 Array, 15sec Image Transfer

SBIG
SBIG SG-4: Picture 1 thumbnail SBIG SG-4: Picture 2 thumbnail SBIG SG-4: Picture 3 thumbnail SBIG SG-4: Picture 4 thumbnail
Free Expedited Shipping

See all shipping options

On Backorder - Please note: You can order this now and have us ship it as soon as it arrives.We will not charge your card for any back ordered items, until it is ready to actually ship. learn more

Made in USA

Our Price

$1,179.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About SBIG SG-4

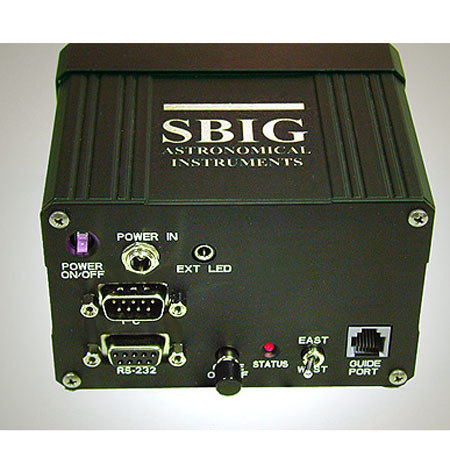

The SBIG SG-4 Autoguider is made to piggy-back on your scope and performs its guiding functions without being connected to any external computing device. Simply attach the tracking cable between the SG-4 and your telescope drive's autoguider input and plug in the 12V power and its ready to go. An RS232 port will allow an initial setup for your particular scope and drive after which operation is completely independent. An optional Bluetooth transmitter may be connected to the RS232 port for wireless setup and download of the image if desired.

The KAI-340 CCD has exceptional read noise and dark current characteristics. The mechanical shutter makes taking dark frames automatic, no need to cover the camera or the scope by hand to capture a dark frame. Dark frames are desirable for autoguiding to remove any hot pixels that might otherwise be mistaken for stars by the guider. A (user supplied) Bluetooth transmitter can be plugged into the RS232 port for wireless setup and image download. The SG-4 will also support SBIG's differential guiding (patent pending) by providing power to illuminate an artificial star.

SBIG SG-4 Features

  • Stand-alone configuration, no computer or other external device required for operation
  • Perfect for DSLR users
  • KAI-340 CCD 640 x 480 @ 7.4u with low read noise and low dark current
  • RS232 port for image download and setup, USB Adapters available
  • Wireless image download with optional Bluetooth device

SBIG SG-4 Specifications

CCD
KAI-0340S
Array
640 x 480
Pixel Size
7.4u
Full Well Capacity
50,000e-
Read Noise
9.8e-
A/D
16 bits
Peak QE
55%
Exposure time
0.05 to 600 seconds
Power Requirements
12VDC (9-18V), 200 mA, unregulated
Power Supply
Universal 100-240VAC to 12VDC supply included
Computer interface
RS-232
Telescope Interface
Opto-isolated relays, RJ-11 type 6P6C jack out
Camera Lens Adapters
C-mount adapter
Image Transfer
15 sec.
Guiding Sensitivity (Limiting Magnitude)
10th magnitude with 60mm aperture
Dimensions
4.4 x 3.8 x 2.8in (11.2 x 9.7 x 7.1 cm)
Weight
20oz. (567g)
