SBIG

SBIG STXL-11002M Basic CCD Camera Package, Kodak KAI-11002M CCD Sensor, 4008x2672 Pixel Array, 16-bit A/D Converter

SKU: SBSTXL11002M MFR: STXL-11002M
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$7,495.00 List Price

Our Price

$6,918.06 $269 per week
Free Expedited Shipping
Qty:
Add to Wishlist

About the SBIG STXL-11002M

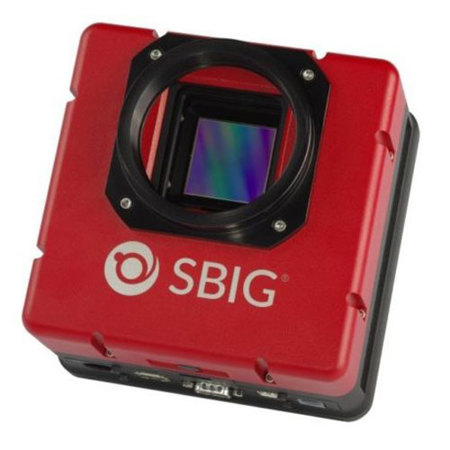

The SBIG STXL-11002M Basic CCD Camera Package utilizes a Kodak KAI-11002M CCD sensor. This camera package provides a highly reliable even-illumination shutter with a shorter backfocus to accommodate camera lenses. Unmatched flat field accuracy for high precision photometry and high end imaging. Superior two-stage cooling -60 degrees C below ambient with air only. Uses STX electronics with a full frame image buffer and the system is water cooling ready. For remote observatories, Ethernet and USB 2.0 included.

SBIG STXL-11002M Includes

  • SBIG STXL-11002 CCD Camera
  • Even-illumination Shutter
  • USB and Ethernet Cables
  • 2-stage TE cooling, Water Cooling Ready
  • 10MHz digitization, 16-bits
  • Universal Power Supply
  • Cables
  • CCDOPS, CCDSoftV5, TheSky v.5 Software
  • SBIG 2 Years Parts and Labor Warranty

SBIG STXL-11002M Features

  • Self-Guiding in Front of filters
  • Lowest Noise 1.8Mhz Readout - 6 sec
  • High Precision 8-position Filter Wheel
  • User Selectable Internal Image Processing
  • 2-Stage TE Cooling -60C delta T with air
  • Built-in Web Server
  • Full Frame Image Buffer
  • Even-illumination (photometric) shutter
  • Ethernet and USB 2.0
  • Built-in RBI Pre-flash
  • Liquid Cooling Capability Standard
  • Uses lower cost 50mm round filters
  • Accepts unmounted and mounted filters
  • User Rechargeable Desiccant Plug
  • Status, Power and Relay Indicators
  • Windows 32-bit and 64-bit (and Mac) Software
  • Optional Remote Guide Head
  • Power Management System
  • 12VDC Operation

SBIG STXL-11002M Specifications

CCD Kodak KAF-11002M
Pixel Array 4008 x 2672 pixels at 9u
CCD Size 36 x 24.7 mm
Total Pixels 11 Million
Full Well Capacity 60000 e-
Dark Current 0.5e-/pixel/sec at -15C
Antiblooming Yes
Shutter Mechanical, Even-illumination
Exposure 0.001 to 3600 seconds, 10ms
Correlated Double Sampling Yes
A/D Converter 16 bit
Gain 0.87e-/ADU
Read Noise 11e- rms
Binning Modes 1x1, 2x2, 3x3, 9x9, x n
Digitization Rate 1.8 Megapixels / Second
Full Frame Download 6.3 Seconds
Max Cooling Delta -60C with air only
Temp. Regulation ±0.1deg.C
Power 12VDC at 6 amps max
Interface USB 2.0 and Ethernet
Computer Compatibility Windows 32 / 64 bit Mac OSX 3rd party Linux
Mounting 3" Threaded Accessory Plate
Backfocus 0.98" / 24.89mm
Dimensions 6x6x3.5" / 152.4x152.4x88.9mm
Weight 4.5lbs / 2.04kg
