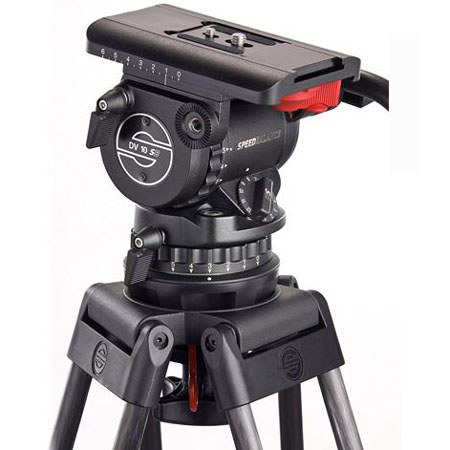

The Sachtler DV 10 SB fluid head is Sachtler's smallest 100mm solution. It provides a 12-step counterbalance as well as five horizontal and five vertical grades of drag (+0). The Speedbalance technology enables fast and smooth adjustments, while the head's payload range from 1 to 12 kg (2-26 lbs) and tilt range of +90° to -75° make the DV 10 SB the ideal tool for diverse shooting conditions.
The fluid head is equipped with a compartment for spare camera screws (pin, 1/4", 3/8"), sparing the operator from tedious searching on the set. The DV 10 SB operates with a DV 100 pan bar. Other useful features include the integrated flat base fitting and a self-illuminating touch bubble.
|Payload||1 - 12 kg / 2.2 - 26.5 lbs|
|Sliding range - plate||60 mm / 2.4 in|
|Counterbalance||in 12 steps|
|Grades of drag||5 each horizontal and vertical + 0|
|Temperature range||-40/+60° C|
|Camera fitting||Touch & Go Plate S|
|Tripod/Pedestal fitting||100 mm bowl, integrated flat base fitting|
|Pan bar(s)||1, Type DV 100|
|Level||self-illuminating Touch Bubble|
|Batteries Level||1 x CR2032|
|Weight||2.6 kg / 5.7 lbs|
