SteadiCam

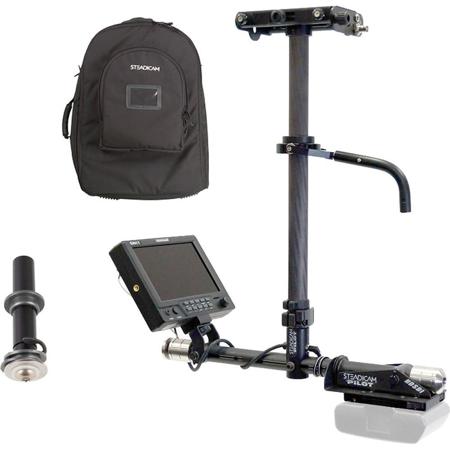

Steadicam Pilot HD/SDI Camera Stabilization Sled Kit for Merlin Arm & Vest, Includes Mounting Plate, Video Cable, Pilot Arm Post Kit, Backpack

SKU: SCPLTHDSABS MFR: PILOTHDS-ABS
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$2,995.00
Free Shipping
Qty:

Add to Wishlist

About this item

The Steadicam Pilot HD/SDI Camera Stabilization Sled is an upgrade kit for owners of the Steadicam Merlin Arm & Vest Kits. The Pilot HD/SDI Sled features an SD/HD-SDI monitor and is designed for cameras weighing between 2 and 9 lbs. The Pilot system provides tool-free adjustment points that allow you to adjust the balance of the rig for each shot, increasing productivity and ease of working with the gear. The kit includes a docking bracket, a Pilot Post arm conversion kit, the sled and monitor. An included Steadicam back pack helps you carry your gear.

Camera Sled
At the heart of the stabilizer system is a true 3-axis gimbal for smooth movement up/down, panning and rotation. The 7" monitor is adjustable for viewing and balance. The camera stage features a micro adjustable X-Y stage for fine tuning your balance, while the included counterweights help the Steadicam operator balance the weight of the camera on the rig.

Carbon Fiber Post
The height of the lightweight carbon fiber post is adjustable and the position of the gimbal, monitor and battery mount are also adjustable, This provides you with a wide variety of options in balancing your Steadicam rig allowing you to tweak it to be just right.

What's Included With This Item

  • Steadicam 804-7430 Pilot Stabilizer Mounting Plate
  • 3' Video Cable
  • 4 x 801-7920-04 Start Balance Weight with O-Ring
  • 4 x 801-7920-05 Middle Balance Weight with O-Ring
  • 801-7291 Pilot Arm Post Kit
  • 8017436 Replacement Camera Mounting Screw
  • 8017435 Replacement Locating Pin
  • 078-5238-01 Backpack for Steadicam Merlin/Pilot
  • Locating Pin Tight Down Screw
  • Docking Bracket
  • "T" Handle Allen Wrench
  • Steadicam 1 Year Parts, 6 Month Labor Limited Warranty

Technical Specs

Camera Sled: Construction Post: Carbon fiber
Camera Sled: Head Assembly/Top Stage Micro adjustable in the X and Y axis
Camera Sled: Monitor Screen Size: 7" (17.78cm)
Aspect Ratio: 4:3, 16:9 Selectable
Signal Type: HD/SDI, NTSC, PAL
Inputs: 1 x BNC (HD/SDI), 1 x RCA (NTSC/PAL)
Camera Sled: Gimbal True three axis
Camera Sled: Counterweights Start Weight: 4 x 2oz (56.7g)
Mid Weight: 4 x 4oz (113.4g)
Video Cable: Connector BNC-BNC
Video Cable: Length 3' (0.91m)
