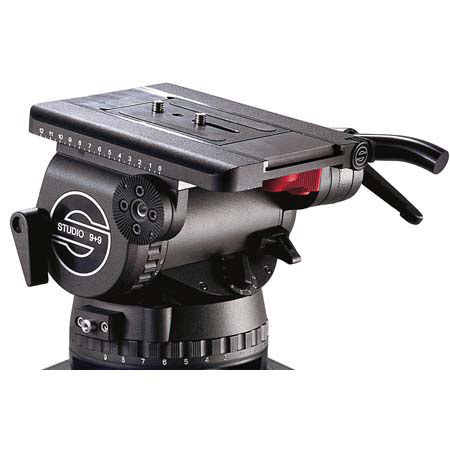

With the Studio 9+9, Sachtler's unique, patented damping system has been significantly extended. As the name indicates, there are nine levels of extra-powerful drag, ensuring perfect counterbalance in 18 steps. Levels 2 to 7 are fairly fine, while the jump from levels 7 to 9 is much greater.
The fluid head also boasts a sliding plate, which has an integrated spindle drive. Centering the camera weight is now fast and easy just slide the plate quickly into place, and fine tune with the spindle drive if required.
The counterbalance system combines the renowned Sachtler system with a dial knob system, compensating perfectly for any load up to 55 kg / 121 lb. In addition, the Studio 9+9 has a viewfinder extension bracket and front box connections as standard features.
|Sliding range - plate||115 mm / 4.5 in|
|Max Load Capacity||121 lbs.|
|Payload||8 - 55 kg / 18 - 121 lb|
|Weight||8.4 kg / 18.5 lb|
|Counterbalance||in 18 steps|
|Grades of drag||9 each horizontal and vertical + 0|
|Temperature range||-40° to +60° C / -40 to +140° F|
|Camera fitting||Touch & Go® Plate 35|
|Tripod/Pedestal fitting||150 mm bowl, integrated flat base fitting|
|Pan bar(s)||1, telescopic, Type Movie|
|Level||self-illuminating Touch Bubble|
|Batteries Level||3 x 625U or LR9|
