Chassis, Baseboard, Dichroic Lamphouse, EVW Lamp, Power Supply, Red Safety Filter, Under Lens Filter Holder
|

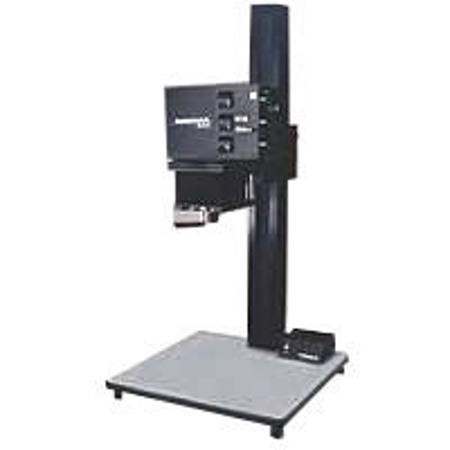

| The 4550XLG's extra-long box-beam girder of deep-anodized aluminum is as strong, rigid and vibration-free as they get. Allows you to print 20x24" images on the baseboard with all film formats from 35mm to 4 x 5". Fully counterbalanced carriage for effortless magnification control, plus an extended chassis, puts the lens axis just over fourteen inches from the column, making the enlarger easy to use with a large 20 x 24" professional 4-bladed easel on the baseboard. Its light attenuator control (dichroic module only) allows you to instantly reduce light output by two f-stops, without affecting color temperature. Useful when making small prints or working with thin negatives to avoid excessively short exposure times and reciprocity problems. |
 |
Smooth-as-silk controls, unmatched by other enlargers. Die-cast lens stage with square, extra-long bellows travels on twin stainless steel focusing tracks. Left- and right-hand fast focus controls plus a 5:1 geared fine focus system help you achieve tack-sharp results with speed and confidence. |
|
Exclusive modular design with slide-in, interchangeable filtration modules: Dichroic, B&W Variable Contrast/Constant Exposure, and B&W straight diffusion. Select one when you purchase your 4550XLG, add others as you need them; it's like having three enlargers in one! |
|
Fade-free dichroic filtration for continuously variable stepless color correction and contrast control: Cyan and Yellow: 0-200cc, Magenta: 0-170cc. In 1cc increments, displayed on illuminated and color-coded readouts. Also perfect for variable contrast B&W printing. |
|
High-output quartz-halogen light source features a 250W lamp with integral dichroic reflector, cooled by a vibration-free, super-quiet Whisper Tone fan and high-efficiency heat sink. Voltage stabilized power supply regulates output to within +/- 2%, ensuring consistent color temperatures and predictable, repeatable exposures. |
|
Large baseboard is a solid inch thick, fully laminated, and steel-reinforced. Baseboard dimensions have been increased (311/2"x 233/4") to fully accommodate 20 x 24" easels. Large, non-skid/non-marring feet add stability. |
|
Dichroic Filtration Module with 0-200 Yellow, 0-200 Cyan and 0-170 Magenta stepless and continuously variable filtration. |
|
Permanent, fade-free dichroic filters. Color-coded, illuminated filtration scales in 1cc increments. |
|
Memory-Lock white focusing. |
|
Two f-stop light attenuator |
| Max. Film Format | 4 x 5" |
| Head Style | Dichroic Color |
| Maximum Height | 59" (head fully raised) |
| Modular Head System | B&W Variable Contrast/Constant Exposure, B&W straight diffusion |
| Baseboard Size | 311/2" x 233/4" |
| Maximum print size on baseboard | 20x24" |
| Filter Drawer | None |
| Replacement Lamp | 250W, 82V Quartz Halogen (EVW) |
| Reversible Column | No |
| Wall Projection | No |
| Tilt/Shift Lens Stage | No |
| Voltage | 100-130 VAC 50/60Hz input, 82V +/-2% regulated output |
| Shipping Weight | 78lbs. |
| | |
|
