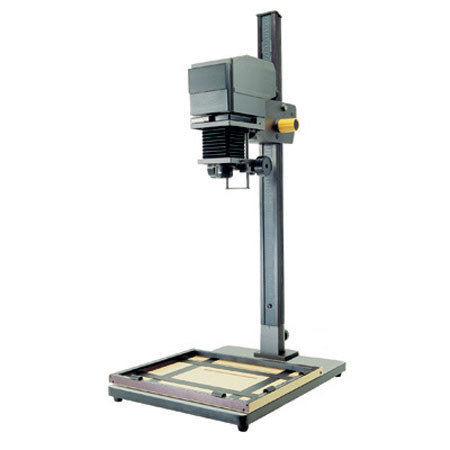

Omega/LPL 670CXL Black & White Photographic Condenser Enlarger for Negatives up to 6x7cm
Mfr. Part: 200671 SKU: SD670CXL
enlarge image
|
|
 |
|
|
|
Item Includes
Chassis, Baseboard, Condenser Lamphouse, Leica threaded (39mm)lens mount, Lamp (PH-140), Red Safety Filter
|
Description
Top of the line for medium format black-and-white
There's one word for black and white prints made on a condenser enlarger: "snappy". And none are more crisp than those printed on a 670CXL. Except for the lamphouse, it is identical to the dichroic model (lamphouses are interchangeable and available separately). Though primarily intended for B&W, the CXL is "color-ready" by using the built-in filter drawer to hold color correction (CC) filters or interchanging the lamphouse with a dichroic unit. Priced for the hobbyist, this incredibly rugged enlarger is widely used in schools and for commercial applications. |
Features
 |
A triple condenser design guarantees uniform, corner-to-corner illumination. A lever-operated pressure plate indexes the carrier and keeps negatives flat. |
|
A red safety filter is included with the CXL. The filter insert is removable, allowing the holder to be used for under-the-lens filters and accessories. |
|
A filter drawer holds filters above the optical path. This eliminates the chance of degrading the image, a risk with under-the-lens filters. |
Specifications
| Max. Film Format | 2-1/4" x 2-3/4" (6x7cm) |
| Head Style | Triple B&W Condenser |
| Maximum Height | 48" |
| Modular Head System | Dichroic Color Head, Variable Contrast/Constant Exposure Head |
| Baseboard Size | 18 x 23" |
| Maximum print size on baseboard | 17.6X (35mm negative, 50mm lens)
8.6X (6x6cm negative, 75mm lens) |
| Filter Drawer | Yes, 3.5 x 3.5" filters |
| Replacement Lamp | 75W Opal Lamp (PH140) |
| Reversible Column | Yes |
| Wall Projection | Yes |
| Tilt/Shift Lens Stage | Yes |
| Voltage | 120VAC, 50/60 Hz |
| Weight | 26.3lbs |
| | |
|
|
|
|
|
|
|
|
|
|
