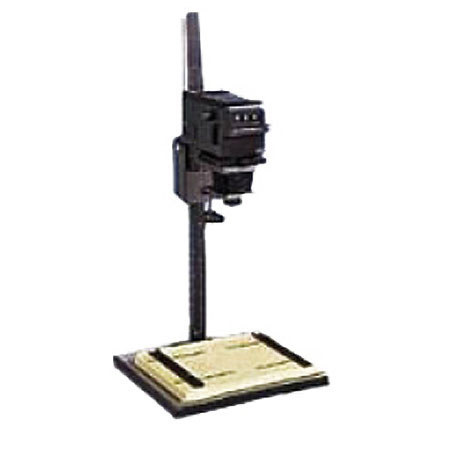

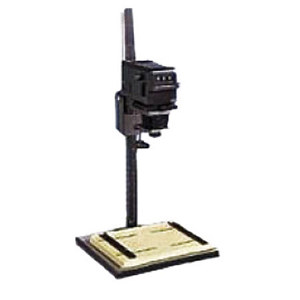

Saunders / LPL D6700 Dichroic Color Photographic Enlarger for Negatives up to 6x7cm
Mfr. Part: 203067 SKU: SDD6700
|
|
 |
|
|
|
Item Includes
Chassis, Baseboard, Dichroic Lamphouse, Lamp (ESJ), Built-In Leica threaded (39mm) lens board
|
Description
The Best Value in Dichroic Color Enlargers!
Feature for feature, dollar for dollar, the D6700 is the best value in color enlargers anywhere. Add an inexpensive camera stage and the enlarger converts to a stable copy stand. Reverse the lamphouse on the baseboard for a professional dichroic light source for custom slide and transparency duplication. The mechanical design is superb, with a precision die cast carriage, negative stage and lens stage. The D6700 is an outstanding choice for black and white as well. The dichroic filters can be dialed to B&W variable contrast filter equivalents. What's more, the diffusion-type light is much more tolerant of scratched or dusty negatives, making printing much easier; a worthwhile consideration, especially for school use. |
Features
 |
Vibration-free performance with an oversize, square-beam, anodized aluminum girder. Reference scales are included. Print up to 12X enlargements from 35mm. The girder reverses for floor projection. |
|
Press-to-release magnification control, for right- or left-hand use. A counterbalanced and bearing-mounted die cast carriage assembly delivers the smoothest operation at any price. |
|
Twin, stainless steel focusing rails and a large, knurled focusing knob with tension-adjusted friction drive. Extra-long bellows are standard. |
|
Locked alignment of die cast lens and film stages for permanent parallelism. |
|
Quartz-halogen illumination ensures short exposures and consistent performance for the life of the lamp. |
|
Dichroic filtration. Fade-free Cyan, Magenta and Yellow filters are continuously variable throughout 0-170cc. Readouts are illuminated and color coded. |
|
Memory-Lock white light system instantly retracts filters for easier, sharper focusing. |
|
18x18" photo-gray laminated baseboard is fully edge banded and steel reinforced. |
Specifications
| Max. Film Format | 21/4 x 23/4" (6 x 7cm) |
| Head Style | Dichroic Diffusion system |
| Maximum Height | 431/2" |
| Modular Head System | C6600 BW Condenser |
| Baseboard Size | 18 x 18" |
| Maximum print size on baseboard | 11x14" |
| Replacement Lamp | 85W 82V Quartz Halogen Lamp (ESJ) |
| Reversible Column | Yes |
| Wall Projection | No |
| Tilt/Shift Lens Stage | No |
| Voltage | 120VAC, 50/60 Hz |
| Shipping Weight | 28.0lbs |
| | |
|
|
|
|
|
|
|
|
|
|
