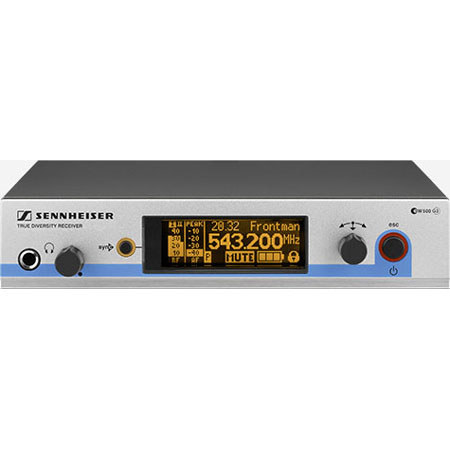

Sennheiser EM500 G3 Wireless UHF Diversity Receiver with GA 3 Rack Mount, Frequency Range B (626-608 MHz)
The Sennheiser EM500 G3 Wireless UHF Diversity Receiver provides the most features and performance the evolution series has to offer. It begins with an especially high number of presets possible per frequency bank (32), making setup of many wireless systems a breeze. The built-in Ethernet port allows computer control and monitoring with a PC running Sennheiser's Wireless System Manager software.
The large graphic display provides a great deal of additional information at a glance. One-touch sync function automatically links up a G3 transmitter with this receiver. Lastly, the switching power supply is ideal for touring acts and rental companies who need a wireless that can be powered from worldwide sources.
|Receiver principle||True Diversity|
|Sensitivity (with HDX, peak deviation)||<2 µV at 52 dBAeff S/N|
|Adjacent channel rejection||= 75 dB|
|Intermodulation attenuation||= 70 dB|
|Blocking||= 75 dB|
|Antenna inputs||5 BNC sockets|
|AF output voltage||1/4" (6.3 mm) jack socket, unbalanced: +12 dBu XLR socket, balanced: +18 dBu (at peak deviation, 1kHz AF)|
|Power supply||12 V DC|
|Dimensions||202 x 212 x 43 mm (7.95" x 8.35" x 1.69")|
|Weight||approx. 980 g (2.16 lbs)|
|Warranty||Sennheiser 2 years limited warranty|
