Sennheiser EW122PG3G Wireless Kit with EK 100 G3 Diversity Receiver - Frequency Band G (Range: 566-608 MHZ)

Sennheiser
SKU: SEEW122PG3G MFR: EW122PG3G

List Price: $789.00

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $39.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $55.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $59.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $154.95
20% Off

Our Price

$629.95
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

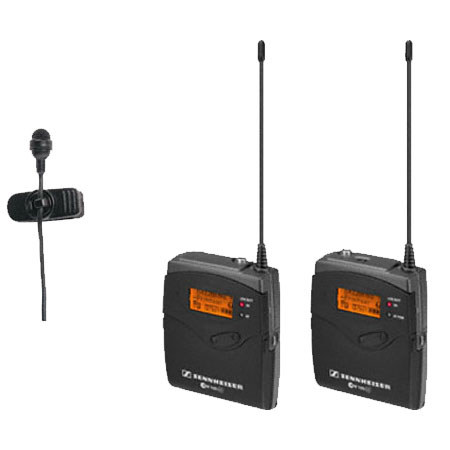

About Sennheiser EW122PG3G

The Sennheiser ME 4 clip-on cardioid microphone compliments this ENG set by blocking out extraneous background noise due to its high-directivity. The bodypack transmitter and portable adaptive diversity receiver are equipped with charging contacts built-in to the housing for use with Sennheiser's optional rechargeable batteries. Reception stays strong as the receiver is upgraded to utilize its line cable as a second antenna for adaptive-diversity operation.

Sennheiser EW122PG3G Features

  • Sturdy metal housing (transmitter and receiver)
  • 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
  • Enhanced frequency bank system with up to 12 compatible frequencies
  • Adaptive-diversity reception for high reception quality
  • Pilot tone squelch for eliminating RF interference when transmitter is turned off
  • Automatic frequency scan feature searches for available frequencies
  • Enhanced AF frequency range
  • Increased range for audio sensitivity
  • Wireless synchronization of transmitters via infrared interface
  • User-friendly menu operation with more control options
  • Illuminated graphic display (transmitter and receiver)
  • Auto-Lock function avoids accidental changing of settings
  • HDX compander for crystal-clear sound
  • Transmitter and receiver feature battery indication in 4 steps
  • Programmable Mute function
  • Contacts for recharging BA 2015 accupack directly in the transmitter or receiver
  • Wide range of accessories adapts the system to any requirement

Sennheiser EW122PG3G Specifications

Transmitter RF output power at 50
typ. 30mW
Transmitter AF frequency response
25 - 18.000 Hz (Line)
Transmitter Max input voltage
3 Veff (transmitter / line)
Transmitter Input impedance
40 kO, unbalanced / 1MO (transmitter / line)
Transmitter Power supply
2 AA batteries, 1.5 V
Transmitter Nominal voltage
2.4 V
Transmitter Operating time
typ. 8h
Receiver principle
Diversity
Receiver Sensitivity
<2,5 µV at 52 dBAeff S/N
Receiver Adjacent channel rejection
= 65 dB
Receiver Intermodulation attenuation
= 65 dB
Receiver Blocking
= 70 dB
Receiver Pilot-tone squelch
detachable
Receiver AF output voltage
3.5 mm jack socket, unbalanced: +12 dBu
Receiver Power supply
2 AA batteries, 1.5V
Receiver Operation time
typ. 8h
Dimensions(Transmitter)
82 x 64 x 24 mm (3.23" x 2.52" x 0.94")
Weight(Transmitter)
approx. 160 g (5.64 oz)
Dimensions(Receiver)
approx. 82 x 64 x 24 mm (3.23" x 2.52" x 0.94")
Weight(Receiver)
approx. 160 g (5.64 oz) (incl. batteries)
Warranty
Sennheiser 2 years limited warranty
