Sennheiser EW172 G3 Wireless Instrument System with GA3 Rackmount Kit, G / 566 - 608MHz Frequency Range

Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500

Our Price

$929.95 $37 per week
Free Expedited Shipping
Add to Wishlist

Protect your investment

About the Sennheiser EW172

The Sennheiser EW172G3MKE2CC-G Wireless Bodypack Microphone System provides dependable wireless performance for guitars and instruments on stage, rehearsals, recording applications, etc. The system includes a UHF diversity receiver, bodypack transmitter and Ci 1 instrument cable with 1/4" phone connector. The transmitter and receiver synchronize channel and frequency at the touch of a button.

The bodypack allows you to charge the (optional) rechargeable pack while it remains in the transmitter. A back-lit display allows for easy operation under dimly-lit conditions and its user friendly menu makes operation quick and easy. This easy to use wireless instrument system will provide guitarists the freedom of cable free performance, with wired microphone audio quality.

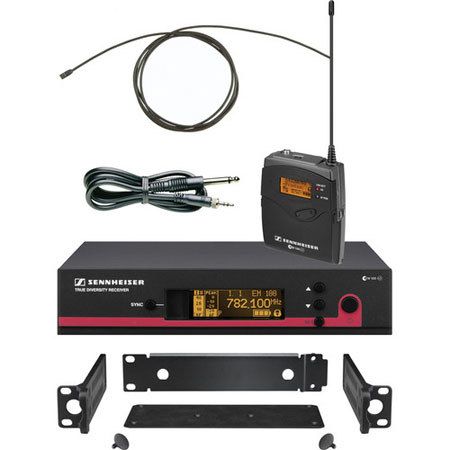

Sennheiser EW172 Includes

  • Sennheiser GA 3 Rackmount Kit for G3 100/300/500 Series
  • CI1 1/8" Mini to 1/4" Male Jack Guitar Connecting Cable
  • NT 2-3-US Power Supply
  • 2 x Antennas
  • 2 x Stacking Elements
  • 2 x AA Batteries
  • Sennheiser Warranty

Sennheiser EW172 Features

  • Sturdy metal housing (transmitter and receiver)
  • 42MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
  • Enhanced frequency bank system with up to 12 compatible frequencies
  • High-quality true diversity reception
  • Pilot tone squelch for eliminating RF interference when transmitter is turned off
  • Automatic frequency scan feature searches for available frequencies
  • Enhanced AF frequency range
  • Increased range for audio sensitivity
  • Wireless synchronization of transmitters via infrared interface
  • User-friendly menu operation with more control options
  • Illuminated graphic display (transmitter and receiver)
  • Auto-Lock function avoids accidental changing of settings
  • HDX compander for crystal-clear sound
  • Transmitter feature battery indication in 4 steps, also shown on receiver display
  • Programmable Mute function
  • Integrated Equalizer, Soundcheck mode and guitar tuner
  • Contacts for recharging BA 2015 accupack directly in the transmitter
  • Wide range of accessories adapts the system to any requirement

Sennheiser EW172 Specifications

Type of System True Diversity UHF Wireless Instrument System
RF Carrier Frequency Range G / 566-608MHz
Overall Frequency Response Line: 25Hz - 18kHz
Mic: 80Hz - 18kHz
Signal-to-Noise Ratio > / - 110dBA
No Of Channels 1680
20 Channel Banks, 1 Fixed Bank, 12 Factory Preset Channels Each
Peak Deviation ±48 kHz
Compliance ETS 300422, ETS 300445, CE, FCC
Type of Receiver EM100 Half-Rack Mountable True Diversity UHF
Receiver: Sensitivity With HDX, peak deviation:<2.5 µV at 52 dBAeff S/N
Receiver: Adjacent Channel Isolation = 65dB
Receiver: Attenuation Intermodulation attenuation: = 65dB
Receiver: Blocking = 70dB
Receiver: Squelch Detachable
Receiver: Outputs 1/4" (6.3 mm) jack socket, unbalanced: +12 dBu
XLR socket, balanced: +18 dBu
Receiver: Headphone Monitoring 1/4" Phone (Front Panel)
Receiver: Power Requirements 12VDC
Receiver: Display Back-lit LCD Display
Receiver: Mounting Options Included GA 3 Rackmount Kit
Receiver: Antenna Type BNC Type x2
Type of Transmitter SK100 Bodypack Transmitter
Transmitter: RF Output at 50 Ohm: typ. 30mW
Transmitter: Frequency Response 25Hz - 18kHz (Line)
Transmitter: Maximum Input Voltage 3V (Line)
Transmitter: Input Impedance 40kOhm
Unbalanced / 1MOhm
Transmitter: Type of Input Connector Locking 0.125" (0.31cm) Mini
Transmitter: Nominal Voltage 2.4V
Transmitter: Type of Microphone Instrument Cable
Transmitter: Battery Type/Approx. Life AA 1.5V Batteries x2 (8 Hours Typ.)
Transmitter: Mute Switch Programmable Mute Function
Transmitter: Level Control Yes
Transmitter: Antenna Type 1/4 Wave
Transmitter: Display Back-Lit LCD
Dimensions Receiver:7.48x8.35x1.69" (18.99x21.20x4.29cm)
Transmitter:3.23x2.92x0.94" (8.20x7.41x2.38cm)
Weight Receiver:1.99 lb (0.902kg)
Transmitter:5.64 oz (159.89g)
