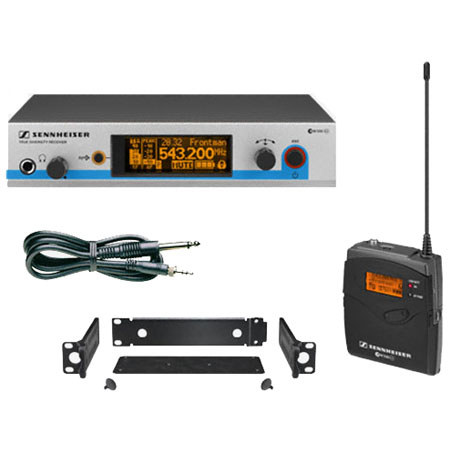

Sennheiser EW572 G3 Rack-Mount Receiver & Bodypack Transmitter System Frequency Range B (626-668 MHz)

Sennheiser
SKU: SEEW572G3B MFR: EW572G3B
Free Shipping

See all shipping options

In Stock Online - Usually ships within 1-2 Days learn more

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $39.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $55.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $59.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $154.95
Made in USA

Our Price

$849.95
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Sennheiser EW572

The Sennheiser EW572 G3 Rack-Mount Receiver & Bodypack Transmitter System lets you keep that tone while clearing the stage of cables. Guitarists and bass guitarists will enjoy the features of this system even before they play a single note. In addition to automatic wireless setup via the enhanced sync function, the components can programmed without transmitting RF (silent configuration mode).

The set also is equipped with soundcheck mode, which allows the signal strength and the RF and audio levels to be checked continuously on the large front panel display. An enhanced AF frequency response that starts at 25 Hz will satisfy even the most discriminating 5-string bass players. An integrated 5-band equalizer, guitar tuner and a guitar cable virtual length emulator complete this feature-rich set.

Sennheiser EW572 Features

  • Sturdy metal housing (transmitter and receiver)
  • 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
  • Enhanced frequency bank system with up to 32 compatible frequencies
  • Ethernet port for connecting to the Wireless Systems Manager (WSM) software for control via computer - this delivers a good overview of monitoring and professional data management for multi-channel systems
  • High-quality true diversity reception
  • Pilot tone squelch for eliminating RF interference when transmitter is turned off
  • Automatic frequency scan feature searches for available frequencies
  • Enhanced AF frequency range
  • Increased range for audio sensitivity
  • Wireless synchronization of transmitter parameter from receiver
  • User-friendly menu operation with more control options
  • Illuminated graphic display, receiver also shows transmitter settings
  • Auto-Lock function avoids accidental changing of settings
  • HDX commander for crystal-clear sound
  • Transmitter feature battery indicatation in 4 steps, also shown on receiver display
  • Programmable Mute function
  • Integrated Equalizer, Soundcheck mode and guitar tuner
  • Contacts for recharging BA 2015 accupack directly in the transmitter
  • Wide range of accessories adapts the system to any requirement

Sennheiser EW572 Specifications

Receiver: Principle
True Diversity
Receiver: Sensitivity
<2 µV at 52 dBAeff S/N (with HDX, peak deviation)
Receiver: Adjacent channel rejection
= 75 dB
Receiver: Intermodulation attenuation
= 70 dB
Receiver: Blocking
= 75 dB
Receiver: Pilot-tone squelch
Detachable
Receiver: Antenna inputs
5 BNC sockets
Receiver: AF output voltage
1/4" (6.3 mm) jack socket, unbalanced: +12 dBu XLR socket, balanced: +18 dBu (at peak deviation, 1kHz AF)
Receiver: Power supply
12 V DC
Transmitter: RF output power at 50 ohm
typ. 30/10mW, switchable
Transmitter: AF frequency response
25 - 18.000 Hz (Line)
80 - 18.000 Hz (Mic)
Max. input voltage transmitter
3 Veff
Transmitter: Input impedance transmitter
40 kohm, unbalanced / 1 Mohm
Transmitter: Power supply
2 AA batteries, 1.5 V
Transmitter: Nominal voltage
2.4 V
Transmitter: Operating time
typ. 8h
Transmitter: Dimensions
82 x 64 x 24 mm (3.23" x 2.52" x 0.94")
Transmitter: Weight
approx. 160 g (5.64 oz)
Microphone: Transducer principle
pre-polarised condenser microphone
Microphone: Pick-up pattern
Omni-directional
Microphone: Frequency response
20 - 20.000 Hz ± 3 dB
Microphone: Sensitivity (1 kHz)
5 mV/Pa 6 2.5 dB (free field, no load)
Microphone: Nominal impedance
1 k ohm
Microphone: Min. terminating impedance
4.7 k ohm
Microphone: A-weighted (DIN IEC 651)
26 dB
Microphone: CCIR-weighted (CCIR 468-3)
39 dB
Microphone: Max. SPL
142 dB
Microphone: Power supply
7.5 V
Microphone: Supply current
approx. 250 µA
Microphone: Connector
LEMO f. SK 50/250
Microphone: Cable length
1.6 m (5.25")
Microphone: Dimensions
 4.8 mm (0.19")
Warranty
Sennheiser 2 years limited warranty
