Sennheiser EW312/345 G3 Wireless System with Handheld and Lavalier Microphones, A - 516-558MHz

SKU: SEW312345G3A MFR: EW312/345G3-A
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$1,299.95 $52 per week
Free Expedited Shipping
Add to Wishlist

Protect your investment

About the Sennheiser EW312/345

The Sennheiser EW312/345 G3 Wireless System with Handheld and Lavalier Microphones (A - 516-558 MHz) has a built-in Ethernet port for remote PC monitoring and setup with Sennheiser's Wireless System Manager software. This receiver's wireless sync function makes it a breeze to link up any G3 transmitter with the unit. In addition, it has a large back-lit graphic display where receiver and transmitter information can be easily seen even on the darkest of stages.

The microphone capsule of this hand-held transmitter/microphone combination is based on Sennheiser's evolution 800 series. Power and presence meet control as the super-cardioid capsule rejects feedback while providing a rich and detailed reproduction of the voice. A programmable mute button silences the microphone when needed or can also be set to act as a push-to-talk mode.

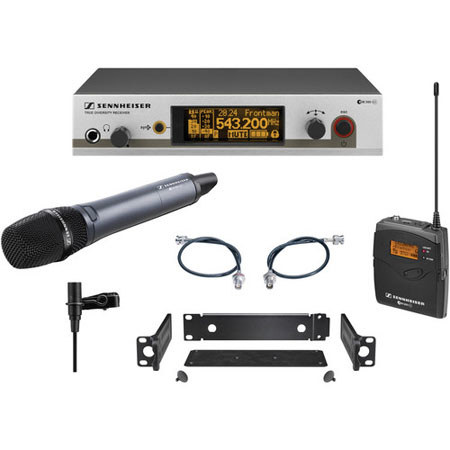

Sennheiser EW312/345 Includes

  • Sennheiser EM300 G3 Wireless UHF Diversity Receiver (Frequency A: 516
  • 558 MHz)
  • SK300 G3 Wireless Bodypack Transmitter (A / 516
  • 558MHz)
  • SKM300-845 G3 Wireless Handheld Microphone A: 516-558MHz
  • ME2 Lavalier Mic for EW Series
  • GA 3 Rackmount Kit for G3 100/300/500 Series
  • NT 2 Power Supply Unit
  • 2 x Antenna
  • 2 x AA Battery
  • Sennheiser Warranty

Sennheiser EW312/345 Features

  • Sturdy metal housing (transmitter and receiver)
  • 42MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
  • Enhanced frequency bank system with up to 24 compatible frequencies
  • Ethernet port for connecting to the Wireless Systems Manager (WSM) software for control via computer - this delivers a good overview of monitoring and professional data management for multi-channel systems
  • High-quality true diversity reception
  • Pilot tone squelch for eliminating RF interference when transmitter is turned off
  • Automatic frequency scan feature searches for available frequencies
  • Enhanced AF frequency range
  • Increased range for audio sensitivity
  • Wireless synchronization of transmitter parameter from receiver
  • User-friendly menu operation with more control options
  • Illuminated graphic display, receiver also shows transmitter settings
  • Auto-Lock function avoids accidental changing of settings
  • HDX compander for crystal-clear sound
  • Transmitter feature battery indication in 4 steps, also shown on receiver display
  • Programmable Mute button on transmitter body
  • Easy-exchangeable microphone modules from Evolution series
  • Integrated Equalizer and Soundcheck mode
  • Contacts for recharging BA 2015 Accupack directly in the transmitter
  • Wide range of accessories adapts the system to any requirement

Sennheiser EW312/345 Specifications

Frequency Bands A: 516-558MHz
Frequency Response 80-18000Hz
Signal to Noise Ratio >115dB
Total Harmonic Distortion (THD) <0.9%
Antenna Connector 2 x BNC 50Ohm
Receiver: Bandwidth 42MHz
Receiver: Frequency Response 25-18,000Hz
Receiver: Audio Signal-to-Noise Ratio >115dB
Receiver: THD & Noise <0.9%
Receiver: Connector XLR/6.3mm
Receiver: Antenna Connector 2 x BNC 50Ohm
Transmitter: No of Channels 1680
Transmitter: Type of Input Connector Locking 1/8" (3.5mm) Mini
Transmitter: Interchangeable Mic Heads No (Locking 1/8" mini input on bodypack accommodates compatible microphones)
Transmitter: Frequency Response 25Hz - 18kHz
Transmitter: Battery Type/Approx. Life x2 AA Batteries, 8 hours (approx)
Transmitter: Mute Switch Programmable Mute Function
Transmitter: Level Control Yes
Transmitter: Antenna Type 1/4 Wave
Transmitter: Display Back-lit LCD Display
Handheld Mic: Bandwidth 42MHz
Handheld Mic: RF Output 10/30mW
Handheld Mic: Frequency Response 80-18,000Hz
Handheld Mic:Audio Signal-to-Noise Ratio > 115 dB(A)
Handheld Mic: THD & Noise <0.9%
Handheld Mic: Transducer Dynamic
Handheld Mic: Polar Pattern Cardioid
Lavalier Mic: Transducer Electret Condenser
Lavalier Mic: Polar Pattern Omnidirectional
Lavalier Mic: Frequency Response 60 Hz - 18 kHz
Lavalier Mic: Signal-to-Noise Ratio > 110 dB
Lavalier Mic: Power Requirements Phantom Power Provided by Wireless Transmitter
Lavalier Mic: Output Connectors 1/8" (3.5mm) (TS, Unbalanced) Mini Jack
Lavalier Mic: Pad No
Lavalier Mic: Low Frequency Roll-Off No
Lavalier Mic: Applications Speakers, Hands Free Vocals, Broadcast, Live Performance, Wireless Videography, etc.
Mount: Compatibility G3 100/300/500 Series Wireless Monitoring Systems
Dimensions Receiver: 8.3x8x1.7" / 21.08x20.32x4.31cm
Transmitter: 3.23x2.92x0.94" / 8.20x7.41x2.38cm
Weight Receiver: 2.2lbs / 0.99kg
Transmitter: 160g / 5.64oz
Handhled Microphone: 15.9oz / 450.75g
